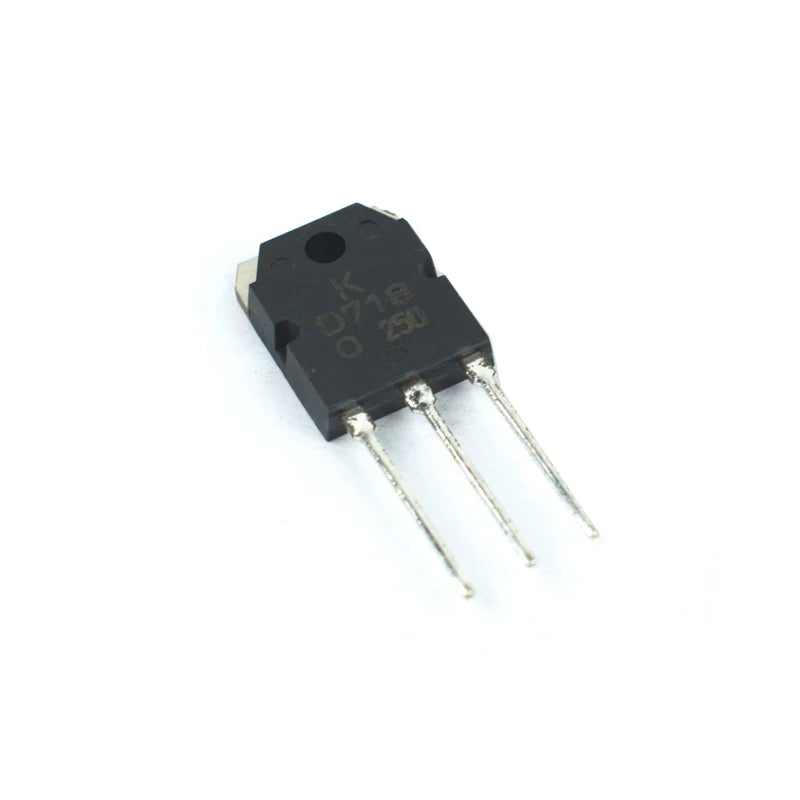

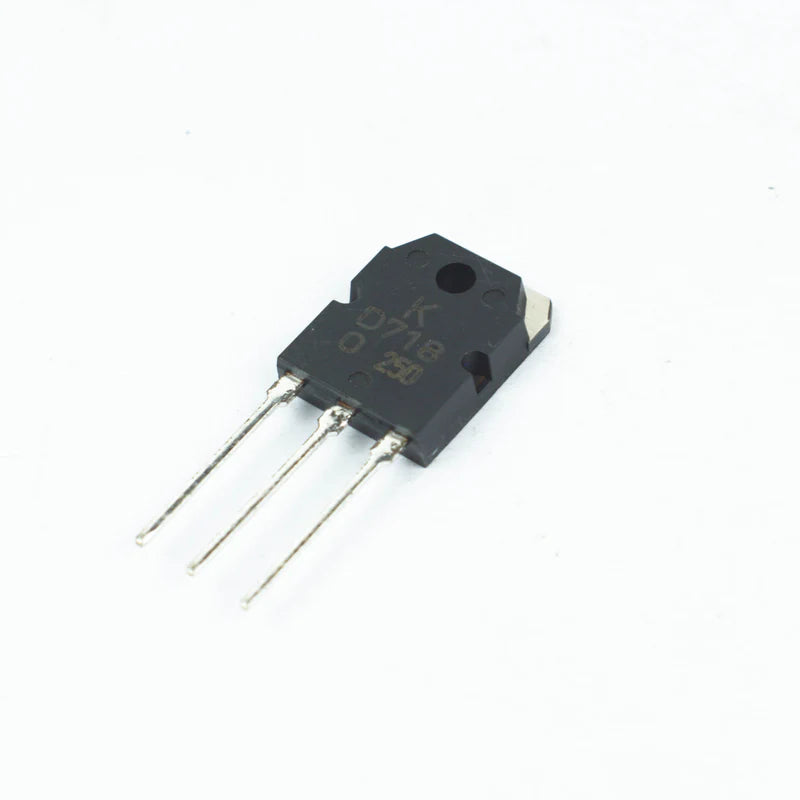

D718 120V 8A NPN Power Transistor TO-3P

D718 120V 8A NPN Power Transistor TO-3P

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description D718 is a triple diffused epitaxial silicon NPN transistor. It is often used in high-power amplifier applications. It is recommended for the 45~50W Audio frequency amplifier output stage. Datasheet...
28 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3575
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

D718 is a triple diffused epitaxial silicon NPN transistor. It is often used in high-power amplifier applications. It is recommended for the 45~50W Audio frequency amplifier output stage.

Datasheet

Features

  • Recommended for 45~50W Audio frequency amplifier
  • Output Stage
  • Complementary to KTB688
SPECIFICATIONS
 Model D718
 Brand Korea Electronic
 Polarity Type  NPN
 Collector-Base Voltage (VCBO) 120V
 Collector-Emitter voltage (VCEO) 120V
 Emitter-Base Voltage (VEBO) 5V
 Collector Current (IC) 10A
 Base Current (IB) 1A
 Collector Power Dissipation (Pc) 80W
 Junction Temperature (TJ) 150 degree C
 Storage Temperature Range (TSTG) -55~150 degree C
