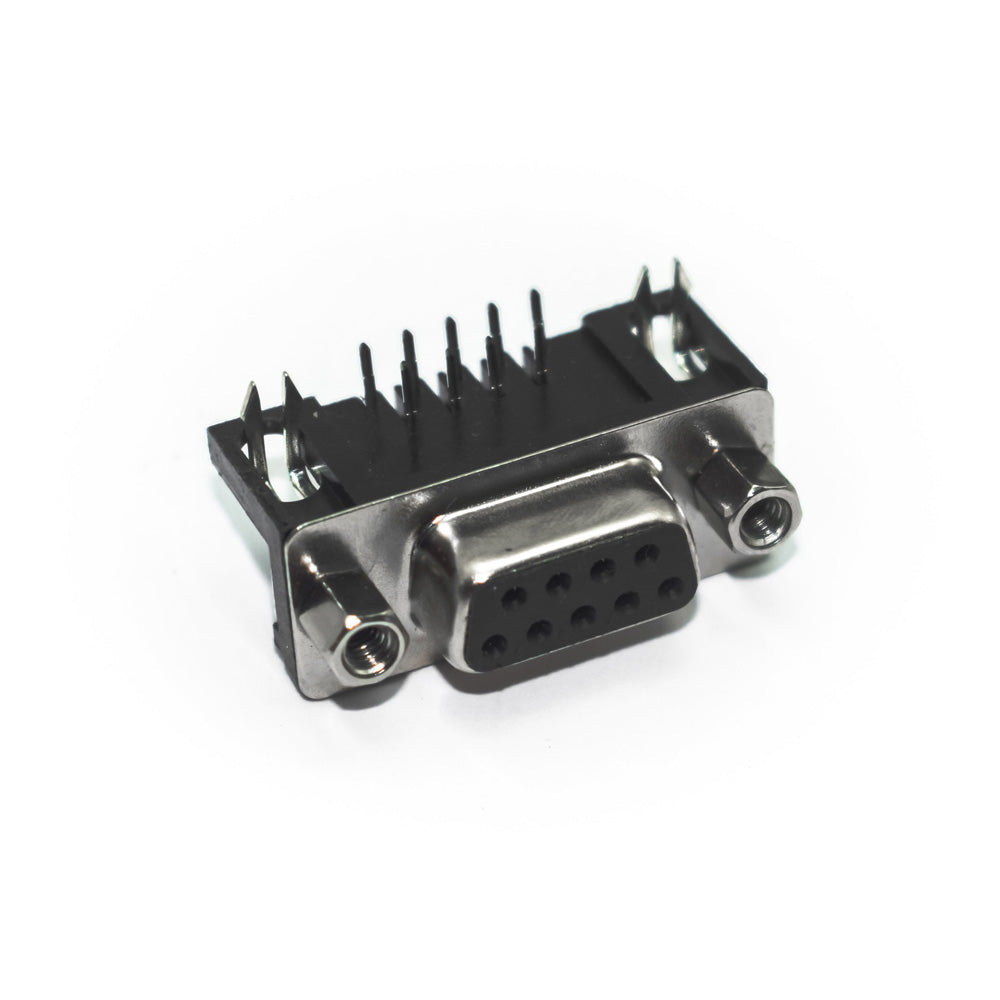

DB9 Female Right Angle Connector Through Hole

DB9 Female Right Angle Connector Through Hole

Description DB9 Female Right Angle Connector is part of the D-sub miniature (D-sub) connector plug and socket family for computer and communication devices. DB-9 (Female Socket) pins are arranged in...
28 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-3239
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

DB9 Female Right Angle Connector is part of the D-sub miniature (D-sub) connector plug and socket family for computer and communication devices. DB-9 (Female Socket) pins are arranged in two rows, as one five-pin row above a four-pin row. The terminals of this connector are bent at a right angle. DB9 connectors are compatible with the EIA/TIA 232 serial interface standard, which established the operation of all nine pins as a standard so that multiple manufacturers may incorporate them into their products. Serial peripheral devices such as keyboards, mouse, joysticks, and other devices used DB9 connectors. They're also employed in data communication DB9 cable assemblies.

SPECIFICATION
Connector Type DB-9
Variant
Female
Voltage Rating 250V
Current Rating 3A
Insulation Resistance 1000 MΩ
Contact Resistance 20mΩ
Size 30.8x12.5x18mm
