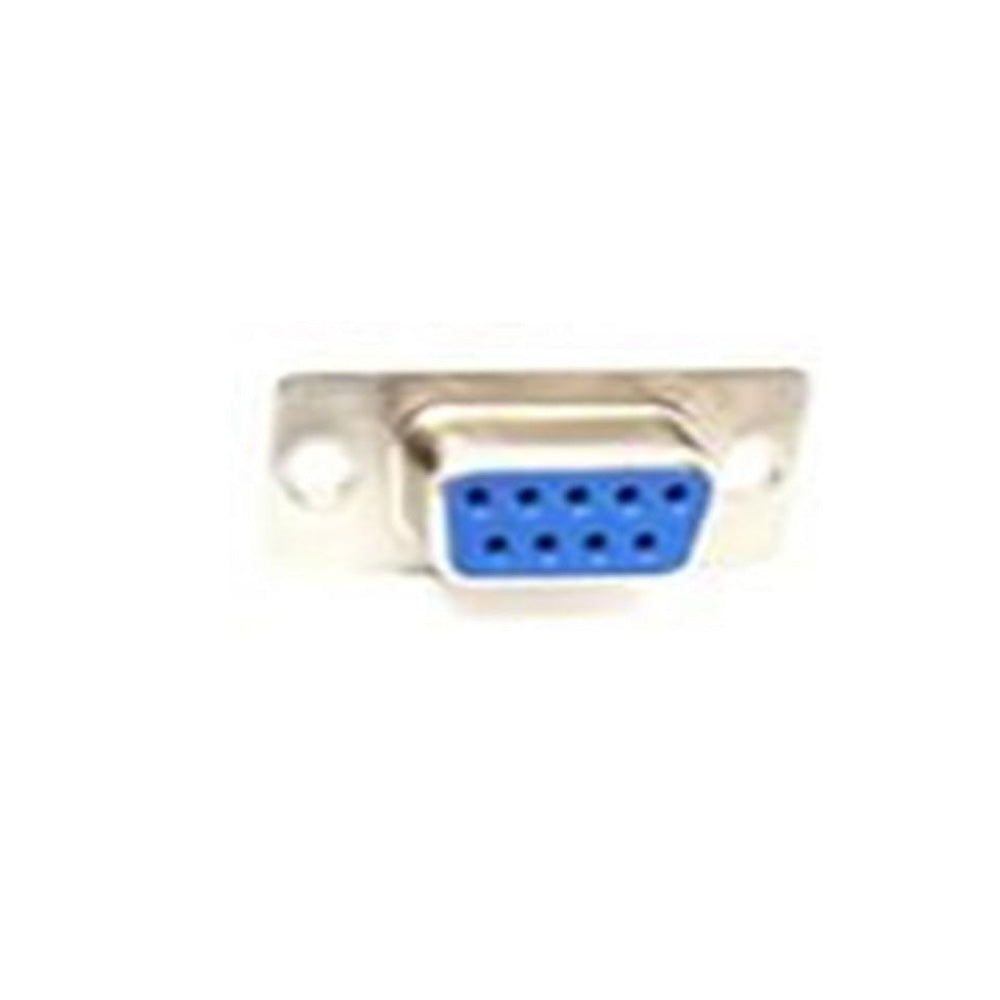

DB9 Female Solder Connector

DB9 Female Solder Connector

Description DB9 Female Welded Connector is the most common type of electrical connector. DB 9 connector is part of the D-sub miniature (D-sub) connector plug and socket family for computer...
29 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-3253
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

DB9 Female Welded Connector is the most common type of electrical connector. DB 9 connector is part of the D-sub miniature (D-sub) connector plug and socket family for computer and communication devices. DB-9 pins are arranged in rows of two, as one five-pin row above a four-pin row. DB9 connectors are designed to work with the EIA/TIA 232 serial interface standard, which determined the function of all nine pins as a standard so that multiple companies could design them into their products. DB9connectors were commonly used for serial peripheral devices like keyboards, mice, joysticks, etc. Also, they are used in DB9 cable assemblies for data connectivity.

SPECIFICATIONS
Connector Type DB9
Connector  Female
Voltage 250 VAC
Current Rating 5A
Insulation Resistance 1000
Contact Resistance 20mΩ
Material Metal & Plastic
Dimensions (LxBxH) 30x12x15 (mm)
