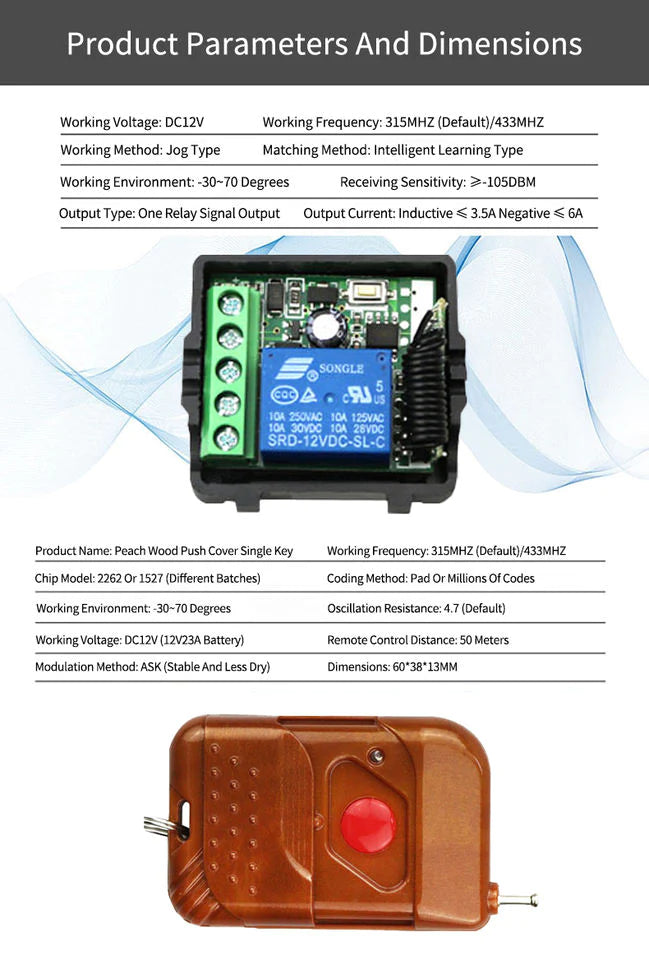

DC 12V 10A 433MHz Single Channel Relay Module RF Wireless Remote Control Switch Receiver and Remote Control Transmitter

DC 12V 10A 433MHz Single Channel Relay Module RF Wireless Remote Control Switch Receiver and Remote Control Transmitter

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description Working voltage: DC12V/23A Operating frequency: 315MHz, 433.92MHz (optional) Working current: 25mA Coding method: fixed code (PT2264 chip)\learning code (eV1527/PT2240B) Transmission distance: >1000m (the sensitivity of the receiving board in...
16 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3986
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: RF Modules
View full product details

Description

Working voltage: DC12V/23A Operating frequency: 315MHz, 433.92MHz (optional) Working current: 25mA Coding method: fixed code (PT2264 chip)\learning code (eV1527/PT2240B) Transmission distance: >1000m (the sensitivity of the receiving board in the open field is above -103dBm) Output power: 16dBm (40mW) Transmission rate: <10Kbps Modulation method: ASK (amplitude modulation) . Working temperature: -10℃~+70℃ Size: 85.3*36.4*16.2mm Application areas: Remote control switch, anti-theft alarm, remote control door lock, remote control electric shutter doors and windows, industrial control products, etc.

Working Mode

Momentary. Toggle .Latched

Momentary

press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control

Toggle

press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control

Latched

press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control )
