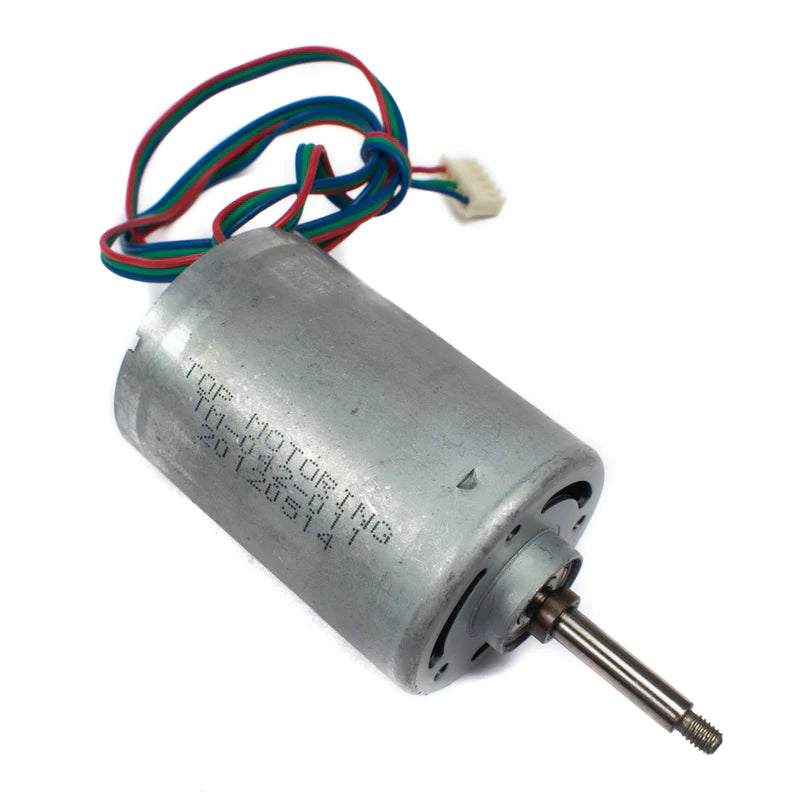

DC 220V High Speed Brushless Motor 3 Phase with Dual Ball Bearing

DC 220V High Speed Brushless Motor 3 Phase with Dual Ball Bearing

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description It's a 220V Dynamo Generator 45W 3 Phase Dual Mute Bearing Inner Rotor Brushless DC Motor. This dc motor must be used with three phase bridge and U- type...
15 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3865
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Motor
View full product details

Description

It's a 220V Dynamo Generator 45W 3 Phase Dual Mute Bearing Inner Rotor Brushless DC Motor. This dc motor must be used with three phase bridge and U- type bracket.

Features:

  • Double ball bearing, Three-phase Brushless Motor
  • More stable performance, easier to assemble and disassemble
  • Three-phase Brushless Motor comes with three lines(red and green blue)
  • The motor can’t be connected with 220V Household electrical. It should combined with 220V brushless drive!
SPECIFICATIONS
Operating Voltage DC 220V
Max. Operating Current 0.28A
Speed 1500 - 10000 RPM
Shaft Diameter 5.0mm
Shaft Length 24mm
Motor Shoulder Diameter 17.5mm
Motor Shoulder height 5.0mm
Motor Diameter 42mm
Motor length with shaft 100mm
