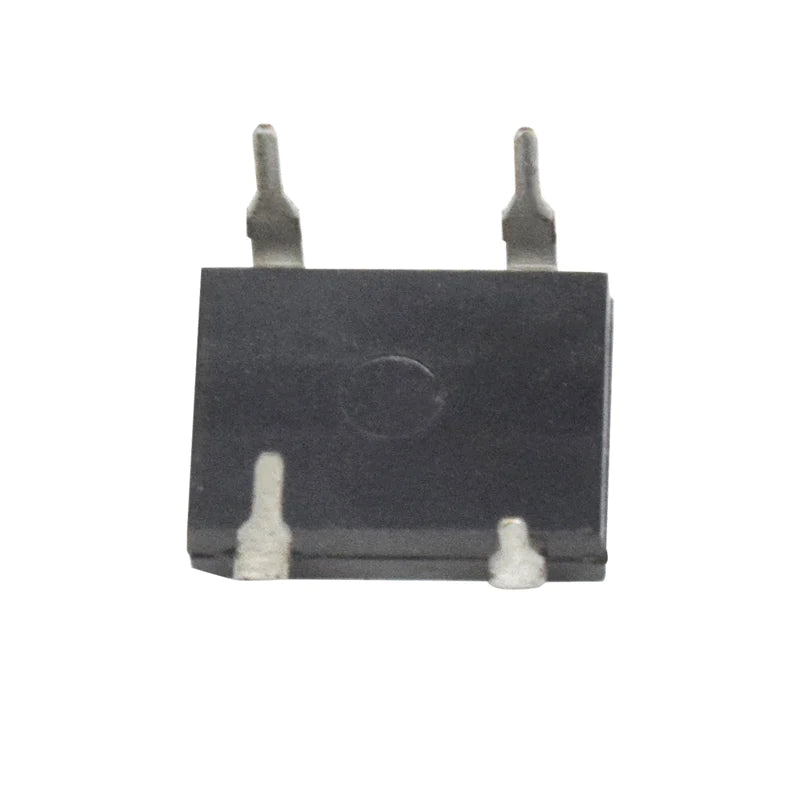

DF10M is a single-phase bridge rectifier. It is a four-pin IC. Two pins are for the AC input, and the two are for the DC output(Positive and Negative). This IC contains four internal diodes, as a bridge rectifier also has four diodes. This IC is used to rectify AC input, and after rectification, it converts into DC output. There is a massive application of this IC in AC/DC bridge full wave rectification, SMPS, Battery charger, and adapter.
Features
| Model | DF10M |
| Type | Bridge Rectifier |
| Peak forward surge current | 50 A |
| Average rectified current | 1.5 A |
| Total device dissipation | 3.1 W |
| Maximum forward voltage drop | 1.1V |
| No of pins | 04 |
| Length and Height | 8.51mm and 3.3 mm |
