Digital Sensor TTP223B Module Capacitive Touch Switch

Digital Sensor TTP223B Module Capacitive Touch Switch

Description It's a Digital Sensor TTP223B Module Capacitive Touch Switch. The Digital Sensor TTP223B Module Capacitive Touch Switch is based on a touch-sensing IC (TTP223B) capacitive touch switch module. When a touch is...
20 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2471
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Modules Touch Switch
View full product details

Description

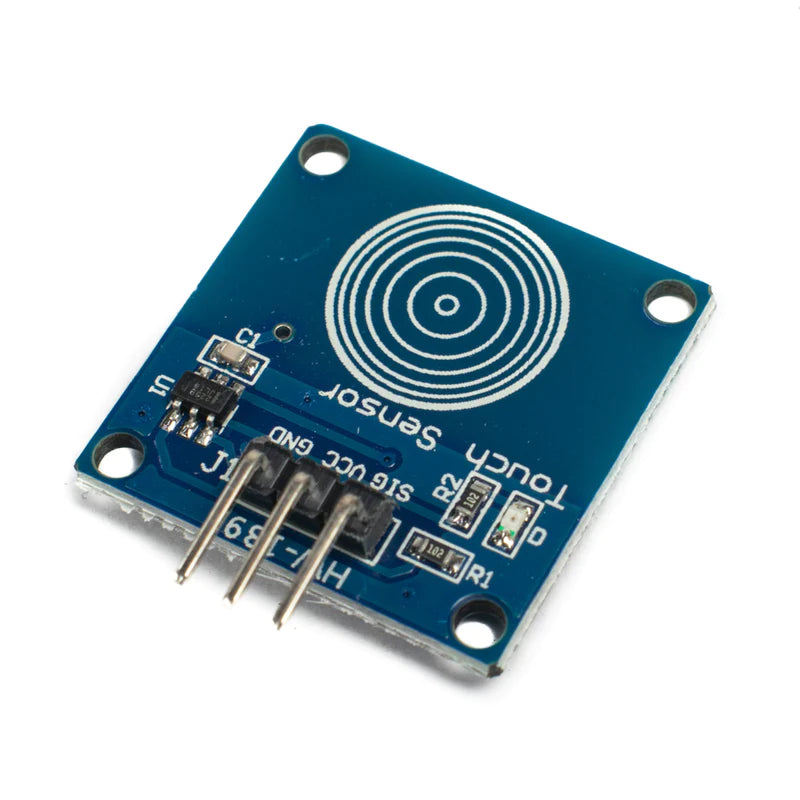

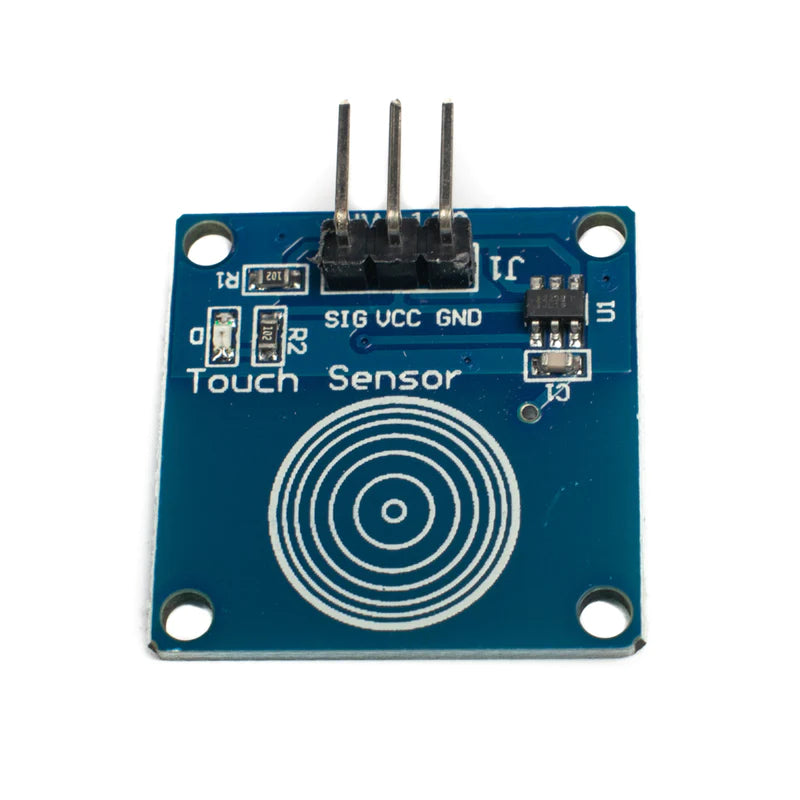

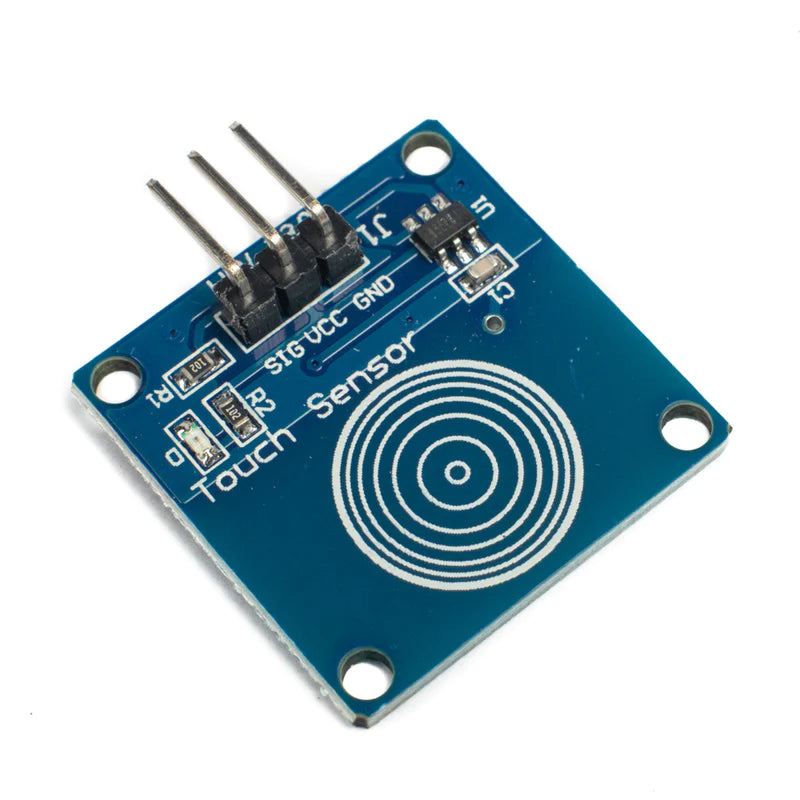

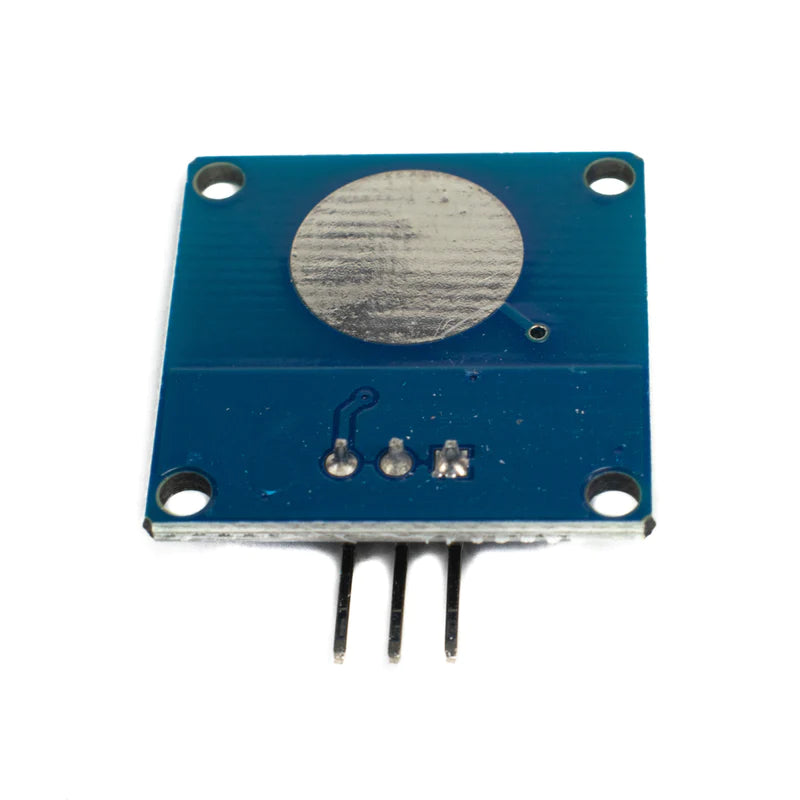

It's a Digital Sensor TTP223B Module Capacitive Touch Switch. The Digital Sensor TTP223B Module Capacitive Touch Switch is based on a touch-sensing IC (TTP223B) capacitive touch switch module. When a touch is sensed on the circular marked region, it outputs high and switches to the quick response state. When not being touched for 12 seconds, it switches to low power state again. In addition to the thin paper (non-metallic) covering the surface of the module, as long as the correct location of the touch, you can make hidden in the walls, desktops and other parts of buttons.

SPECIFICATIONS:
Operating Voltage(VDC) 2-5.5
Output High(VOH) 0.8VCC
Output Low(VOL) 0.3VCC
Response time (touch mode) 60ms
Response time (low power mode) 220ms
Dimensions 24mmx24mm
