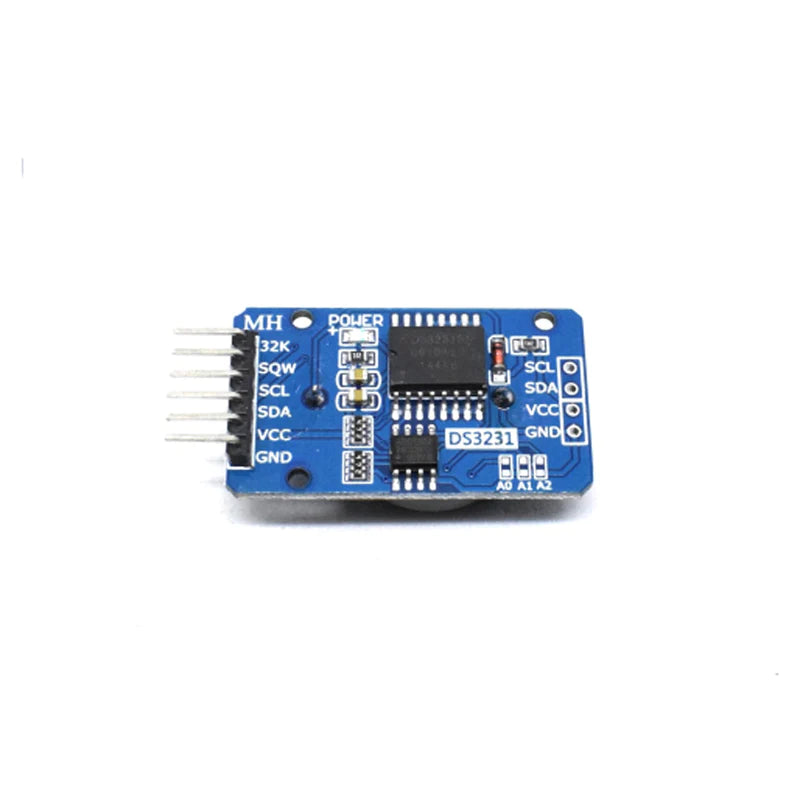

DS3231 Real Time Clock Module

DS3231 Real Time Clock Module

₹ 145.00
₹ 170.00 ₹ 145.00
Sold Out
Tax included. Shipping calculated at checkout.
Description It's a DS3231 Real Time Clock Module. This is a RTC based module. DS3231 RTC  is a Precise Real-Time Clock Module with 32Kbit EEPROM and a built-in 10-bit temperature sensor having a...
23 people are viewing this right now

Availability: In stock

SKU: ATC-2786
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Modules RTC & ADC Module
View full product details

Description

It's a DS3231 Real Time Clock Module. This is a RTC based module. DS3231 RTC  is a Precise Real-Time Clock Module with 32Kbit EEPROM and a built-in 10-bit temperature sensor having a resolution of 0.25C. The DS3231 RTC module Precise Real-Time Clock Module is a low-cost, extremely accurate I²C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input and maintains accurate timekeeping when the main power to the device is interrupted.

Features

  • DS3231 based RTC with 2032 Battery Holder.
  • Highly Accurate RTC
  • Real-Time Clock Counts
  • Digital Temp Sensor Output.
  • Register for Aging Trim.
  • Two Time-of-Day Alarms.
  • Programmable Square-Wave Output Signal.
  • Configurable I2C device Address for AT24C32 using SMD jumpers on PCB (A0, A1, A2).
  • 1Hz output pin SQW.
  • 32KHz output pin 32K.
  • Time Format: HH: MM: SS (12/24 hr).
  • Date Format: YY-MM-DD.
SPECIFICATION
 Voltage Supply 2.2 V ~ 5.5 V
Active Supply Current (VCC = 3.63V/VCC = 5.5V) 200/300 µA
Color Blue
