Description

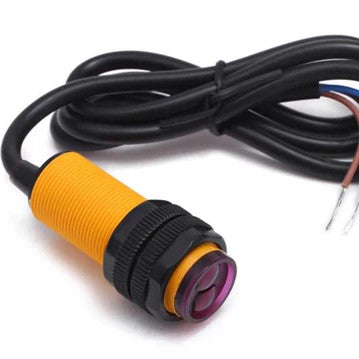

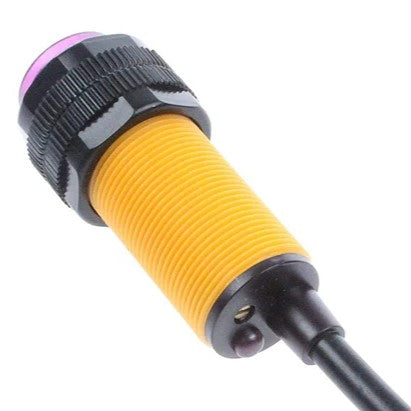

The E18-D80NK Adjustable Infrared Sensor Switch 3-80cm is a set of transmitters and receivers in one of the photoelectric switch sensors. The detection distance can be adjusted according to the demand. The sensor has a detection range of 3-80cm.

The Adjustable Infrared Sensor Switch is small, easy to use, inexpensive, easy to assemble and can be widely used in a robot to avoid obstacles, interactive media, industrial assembly lines, and many other occasions.

The switching signal output differs in accordance with the obstacles. It remains high when no obstacles and remains low when there are obstacles. There is a bright light behind the probe to detect the scope of 3cm – 80cm.

Explore the Proximity Sensors at best prices.

Connections

• Red wire: +5V
• Green wire: GND
• Yellow wire: Digital output

Applications

• In the food and pharmaceutical industries, and in packaging plants to detect product size to spot any errors, or simply spot their absence
• Detection of colours
• Monitoring bigger areas for objects with light grids
• Logistics and materials handling:
• Automatic doors for building and public transport

Package Includes

• 1 x E18-D80NK Adjustable Infrared Sensor Switch 3-70cm.

Specifications

• Light source :- Infrared

• Sensing Range :- 3cm to 80cm

• Input Voltage (V) :- 5

• Current Consumption :- 300mA

• Dimensions (Dia.xLength.) mm :- 23.2 x 69

• Weight :- 100 grams

• Cable Lenght :- 70 cms

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
