Description

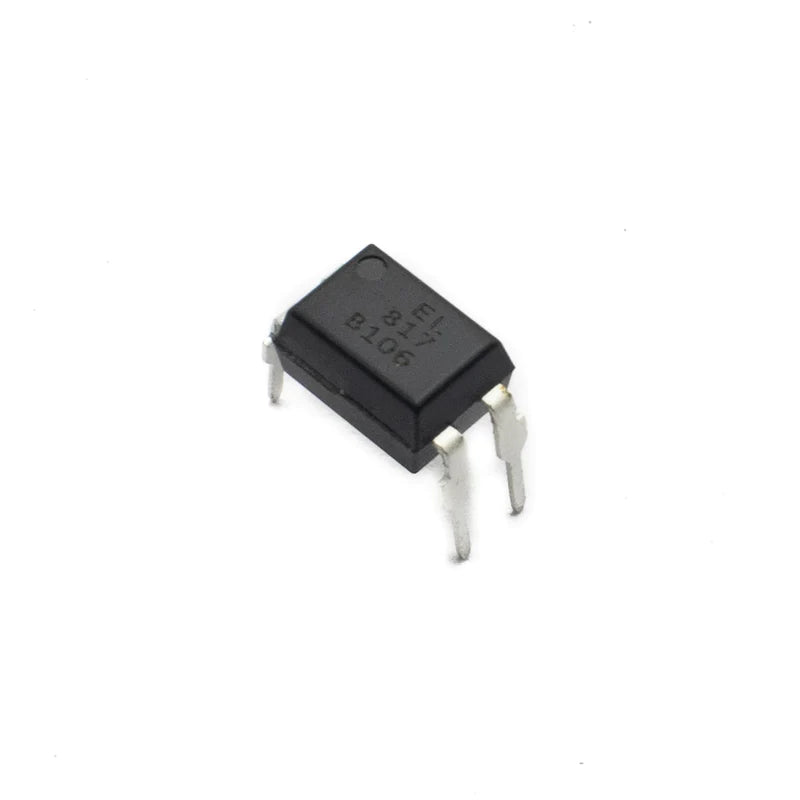

The EL817 device consist of the infrared emitting diode, optically coupled to a phototransistor detector. Its packaged in a 4-pin DIP package and is available in wide-lead spacing. 2 pins are for input and the other two are for output.

Pinout

1 Anode
2 Cathode
3 Emitter
4 Collector

Applications

  • Programmable controllers
  • System appliances, measuring instruments
  • Telecommunication equipment
  • Home appliances, such as fan heaters, etc.
  • Signal transmission between circuits of different potentials and impedance

Features

  • Current transfer ratio (CTR: 50~600% at IF =5mA, VCE =5V)
  • High isolation voltage between input and output (Viso=5000 V RMS)
  • Creepage distance >7.62 mm
  • Operating temperature up to +110°C

Specifications
Input-Forward current 60mA
Input-Reverse voltage 6V
Input-Forward voltage 1.2 - 1.4 V
Output-Collector-Emitter voltage 35V
Output-Emitter-Collector voltage 6V
Output-Collector current 50mA
Operating temperature -55 ~ +110°C
Storage temperature -55 ~ +125°C
Total power dissipation 200 mW
