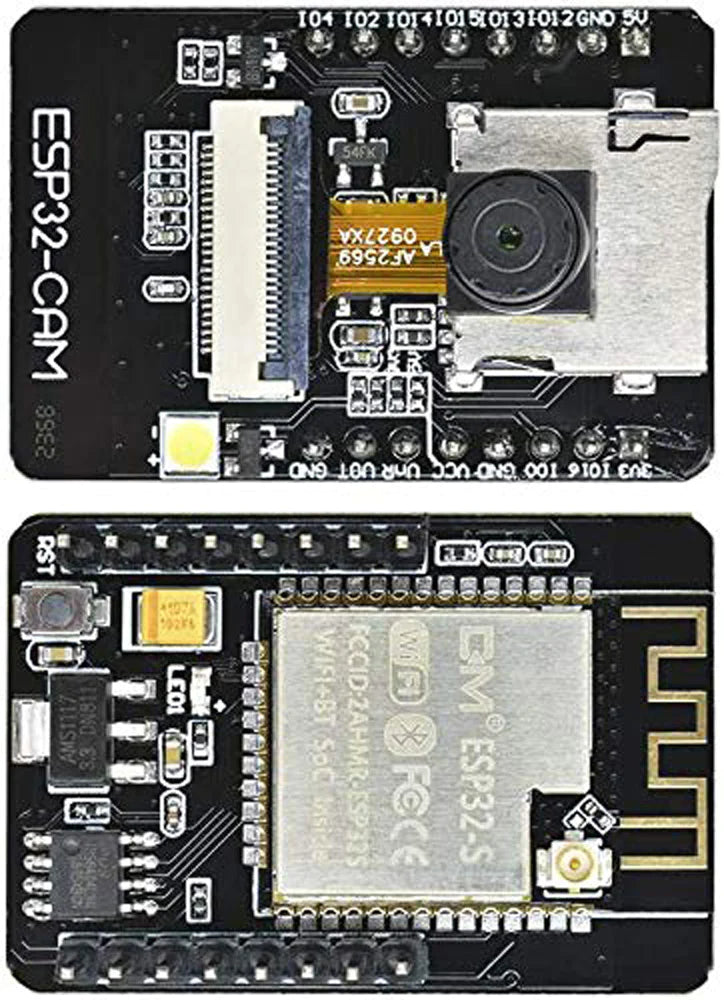

ESP32 CAM WiFi Bluetooth Module with OV2640 Camera Module

ESP32 CAM WiFi Bluetooth Module with OV2640 Camera Module

Description The ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module 2MP has a very small size camera module that can operate independently as a minimum system. It has a footprint of 40x27 mm. ESP32-CAM...
15 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-3384
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: ESP Stock Clearance Sale
View full product details

Description

The ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module 2MP has a very small size camera module that can operate independently as a minimum system. It has a footprint of 40x27 mm. ESP32-CAM is a WIFI and Bluetooth dual-mode development board that uses PCB onboard antennas and cores based on ESP32 chips. The ESP integrates WIFI, traditional Bluetooth, and BLE Beacon, with 2 high-performance 32-bit LX6 CPUs, 7-stage pipeline architecture, main frequency adjustment range 80MHz to 240 MHz, on-chip sensor, Hall sensor, temperature sensor, etc. Fully compliant with WIFI 802.11b/g/n/e/i and Bluetooth 4.2 standards, it can be used as a master mode to build an independent network controller, or as a slave to another host, MCUs to add networking capabilities to existing devices. ESP32-CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications. The ESP32-CAM has a very competitive small-sized camera module that can operate independently as a minimum system. ESP32-CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals.

Features

  • It is the smallest 802.11b/g/n Wi-Fi BT SoC module.
  • It has low power 32-bit CPU, can also serve the application processor.
  • It has Up to 160 MHz clock speed, summary computing power up to 600 DMIPS.
  • It has a built-in 520 KB SRAM, external 4MPSRAM.
  • It supports UART/SPI/I2C/PWM/ADC/DAC.
  • It supports OV2640 and OV7670 cameras, built-in flash lamp.
  • It supports image WIFI upload.
  • It Supports TF card.
  • Supports multiple sleep modes.

Applications

ESP32-CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications.

  • ESP32-CAM Surveillance Camera
  • ESP32-CAM Take Photo and Save to MicroSD Card
  • ESP32-CAM PIR Motion Detector with Photo Capture
  • ESP32-CAM Take Photo and Display in Web Server
SPECIFICATION
Input Voltage 5 V
SPI Flash Default 32 Mbit
RAM 520 KB SRAM + 4 MB PSRAM
Bluetooth Bluetooth 4.2 BR/EDR and BLE standards
Wi-Fi 802.11 b/g/n/
UART Baud rate  115200 bps
Image Output Format JPEG, BMP, GRAYSCALE
Operating Temperature -20 °C - 85 °C
