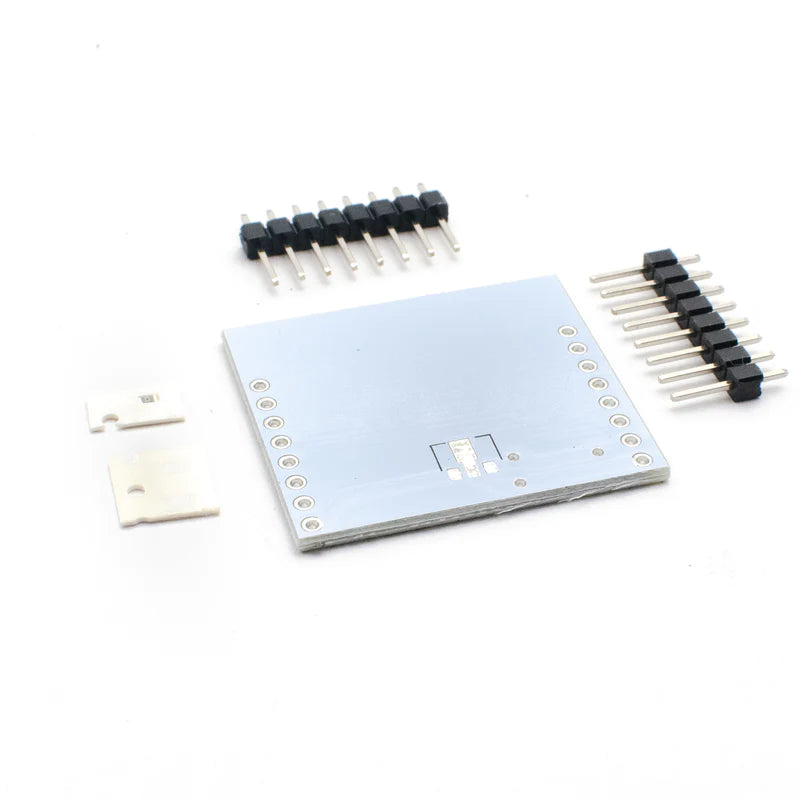

ESP8266 I/O Lead Out Adapter Plate Expansion Module for ESP-07 ESP-12E

ESP8266 I/O Lead Out Adapter Plate Expansion Module for ESP-07 ESP-12E

Description The ESP8266 Serial Wireless WIFI Module Adapter Plate is compatible with the ESP-07, ESP-08, and ESP-12E SMD ESP8266 Modules. ESP8266 adaptor plate for the ESP07, ESP08, and ESP12 microcontrollers....
15 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-3379
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: ESP Modules
View full product details

Description

The ESP8266 Serial Wireless WIFI Module Adapter Plate is compatible with the ESP-07, ESP-08, and ESP-12E SMD ESP8266 Modules. ESP8266 adaptor plate for the ESP07, ESP08, and ESP12 microcontrollers. The WiFi module can be soldered to the PCB, where it is coupled to headers that clearly identify connecting locations. This adapter allows you to quickly and easily connect an ESP-12 module to a normal breadboard. Pins are readily set out and spaced at 0.1" intervals. Male header pins on the ESP8266 ESP-12 breakout adapter are compatible with our ESP8266 ESP-12F module.

Feature:

  • It has a reserved land pattern for a 3.3V regulator.
  • Pinouts in black colour are on the upper layer.
SPECIFICATION:
PCB Color White
Size (LxB) 32x29mm
PCB thickness 1.6mm
