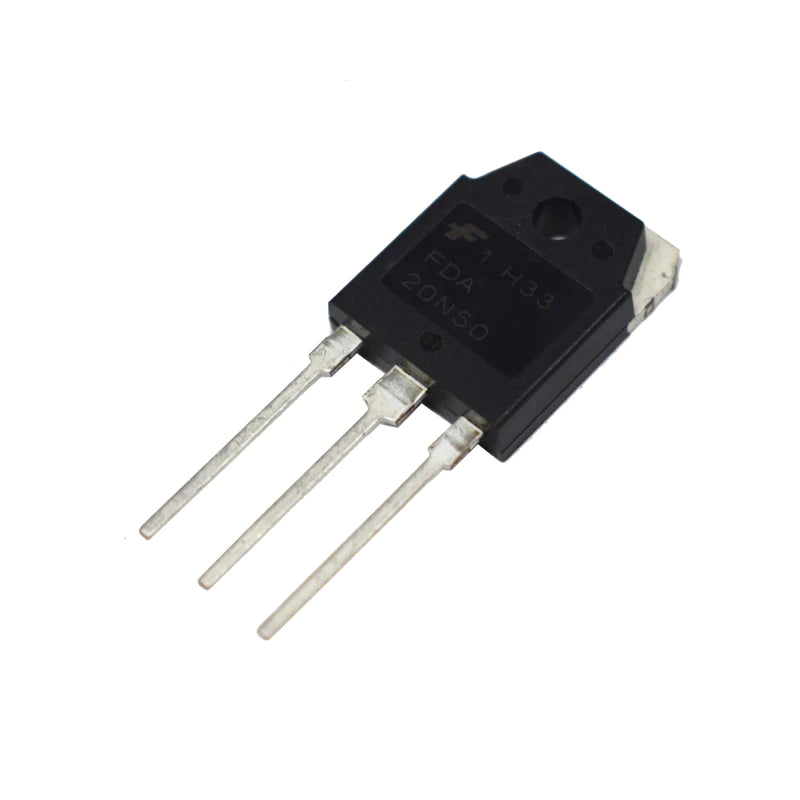

20N50 is an N- Channel MOSFET. It's a three-terminal silicon device, and the current capability is 20A it is used in fast switching operations its breakdown voltage rating is 500V, and the threshold voltage is 5V. They are intended for motor control circuits, UPS, switched-mode power supplies, DC-to-DC converters, and general switching applications. The Nell 20N50 is a three-terminal silicon device having a breakdown voltage rating of 500V, a maximum threshold voltage of 5 volts, a current conduction capability of 20A, quick switching speed, low on-state resistance, and these characteristics.
Features
It has a fast switching speed
avalanche energy specified 100%
Its maximum operating voltage is 500V
Its current capability is 20A
Its operating temperature is 150-degree centigrade
| Model | FDA20N50 |
| Type | N-Channel MOSFET |
| Package | TO-3PB |
| Brand | Fairchild |
| Threshold voltage | 5V |
| Avalanche current | 20A |
| Total power dissipation | 280W |
| Operating and Storage Temperature Range | -55°C TO 150°C |
