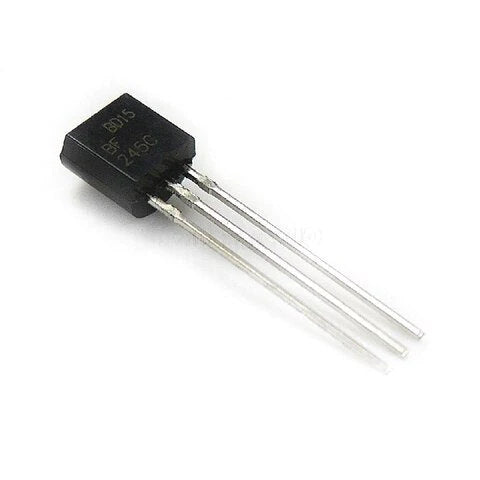

BF245C is a general purpose N-channel symmetrical junction field-effect transistors in a plastic TO-92 variant package. It is primarily made to be used as an audio frequency amplifier and as an amplifier in the VHF and UHF frequency bands. A very small and low gain signal (RF, audio, or any other signal) can be amplified to high gain with undesirable noise filtered using the transistor's high gain and low noise properties.
Features:
Applications :-
| Model | BF245C |
| Brand | Fairchild |
| Transistor Type | N Channel JFET |
| Max Voltage Applied From Drain to Source | 30 V |
| Max Drain to Gate Voltage | 30 V |
| Max Reverse Gate to Source Voltage | -30 V |
| Max Continues Drain Current | 25mA |
| Gate to Source Cutt-off Voltage | -0.5 V – 0 V |
| Max Power Dissipation | 300mW |
| Operating temperature | -55 °C - 150 °C |
| Package | TO-92 |
