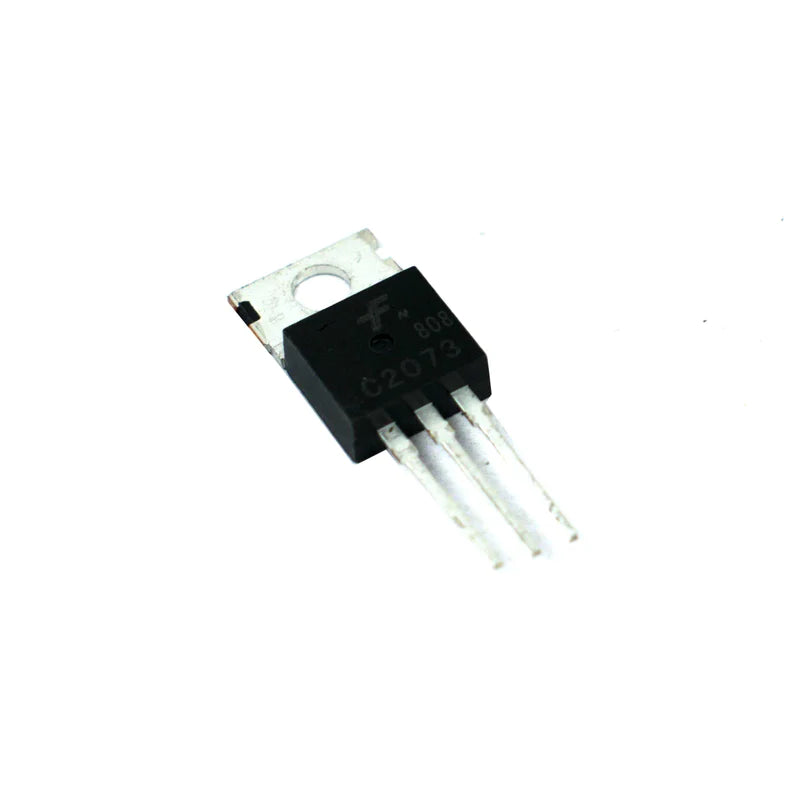

FAIRCHILD C2073 is a silicon NPN power transistor. It is a Through-hole(THD) active component that consists of three terminals Base, Collector, and Emitter.
Features
| Model | C2073 |
| Brand | FAIRCHILD |
| Type | NPN |
| Collector-Base Voltage (VCBO) | 150V |
| Collector-Emitter voltage (VCEO) | 150V |
| Emitter-Base Voltage (VEBO) | 5V |
| Collector Current (IC) | 1.5A |
| Collector Dissipation | 25W |
| Junction Temperature | 150 degree C |
| Storage Temperature | -55~150 degree C |
