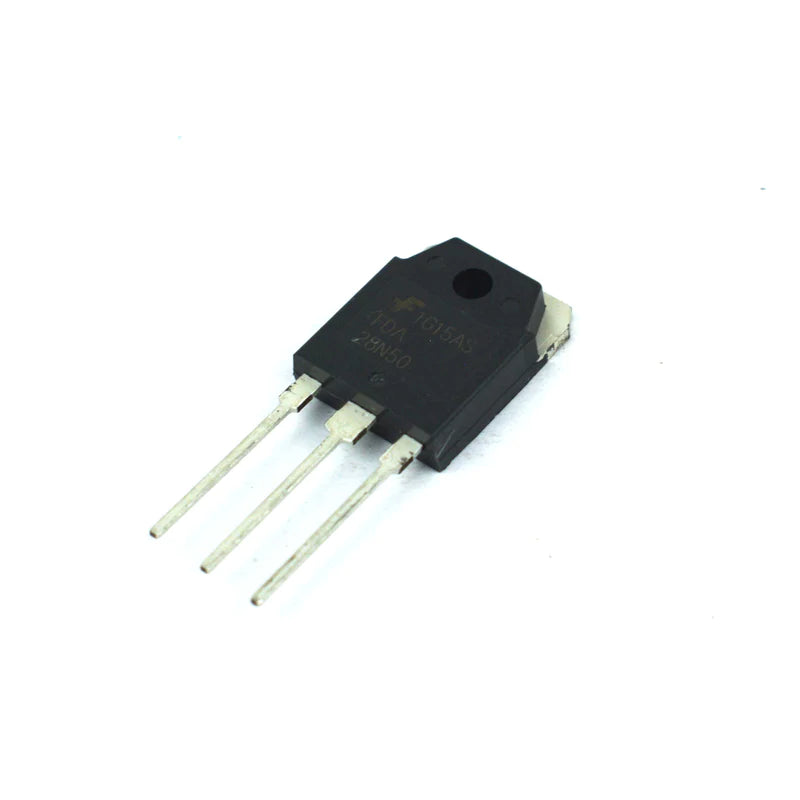

FAIRCHILD FDA28N50 N-Channel MOSFET

FAIRCHILD FDA28N50 N-Channel MOSFET

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description FAIRCHILD FDA28N50 is an N-Channel 500V, 28A MOSFET. It is a Through-hole(THD) active component which consists of three terminals Gate, Source, and Drain. These N-Channel enhancement mode power field effect...
27 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3630
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

FAIRCHILD FDA28N50 is an N-Channel 500V, 28A MOSFET. It is a Through-hole(THD) active component which consists of three terminals Gate, Source, and Drain. These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, planar stripe, DMOS technology.

Features

  • RDS(on)= 0.122Ω( Typ.)@ VGS= 10V, ID= 14A
  • Low Gate Charge (Typ. 80nC)
  • Low Crss (Typ. 42pF)
  • Fast Switching
  • 100% avalanche tested
  • Improved dv/dt capability
  • RoHS compliant

Datasheet

SPECIFICATIONS
 Model FDA28N50
 Brand FAIRCHILD
 Transistor Type  N-Channel
 Drain-Source Voltage (VDSS) 500V
 Gate-Source Voltage (VGSS) ±30V
 Drain Current Continuous (ID) 28A
 Drain Current Pulsed 112A
 Power Dissipation 310W
 Operating and storage Temperature range -55~150 degree C
 Mounting Type Through Hole
