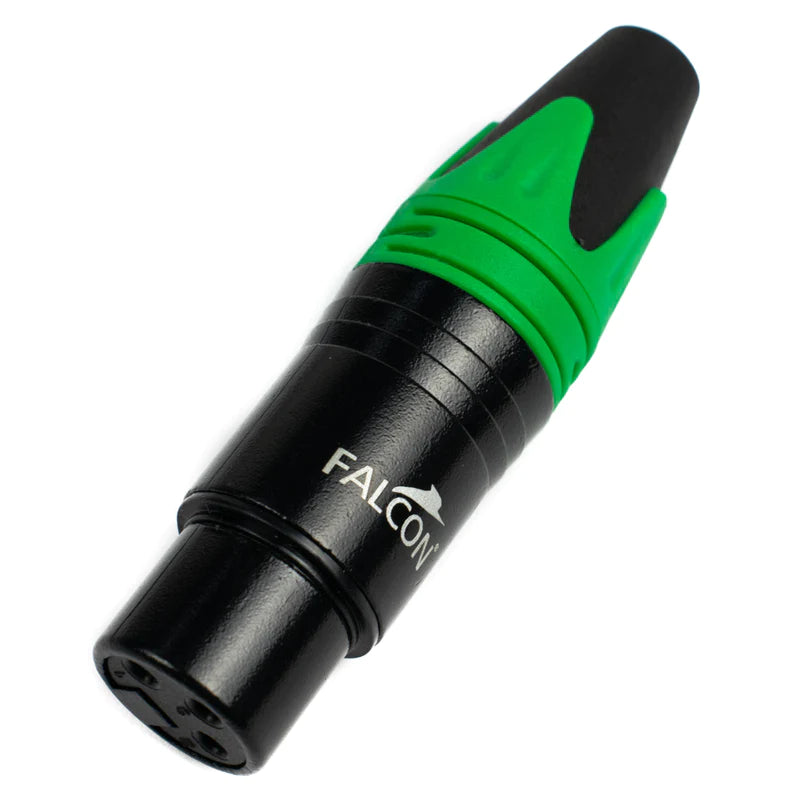

3 pole female cable connector with metal housing and metal contacts. The next generation of the worldwide accepted standard of XLR cable connectors. It is more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features
Model | FC3PMNTCT |
Connection Type | XLR |
Capacitance Between Contacts | ≤4pF |
Contact Resistance | ≤3mΩ |
Dielectric Strength | 1.5kV DC |
Insulation Resistance | >10GΩ |
Rated Current per Contact | 16A |
Rated Voltage | <50V DC |
Size | 70x20mm |
Cable Outer Diameter | 3.5-8.0mm |
Insertion Force | ≤20N |
Withdrawal Force | ≤20N |
Lifetime | >1000 Mating Cycles |
Wire Size | 2.5 Sq.mm (14 AWG) |
Locking Device | Latch Lock |
Boot Material | Polyurethan |
Operating Temperature | -30°C to 80°C |
