The Super MOS® MOSFET is next-generation high voltage super-junction (SJ) technology. It differs from traditional SJ MOSFETs in that it uses a deep trench filling technique. Lowest R s p on-resistance, improved switching performance, and durability are provided by this cutting-edge technology and exact process control. For high frequency switching power converter applications including PFC, server/telecom power, FPD TV power, ATX power, and industrial power applications, super MOS MOSFET is appropriate.
Features
Its N channel MOSFET
It has 1 Channel
Low effective output capacitance
Its continuous drain current is 13A

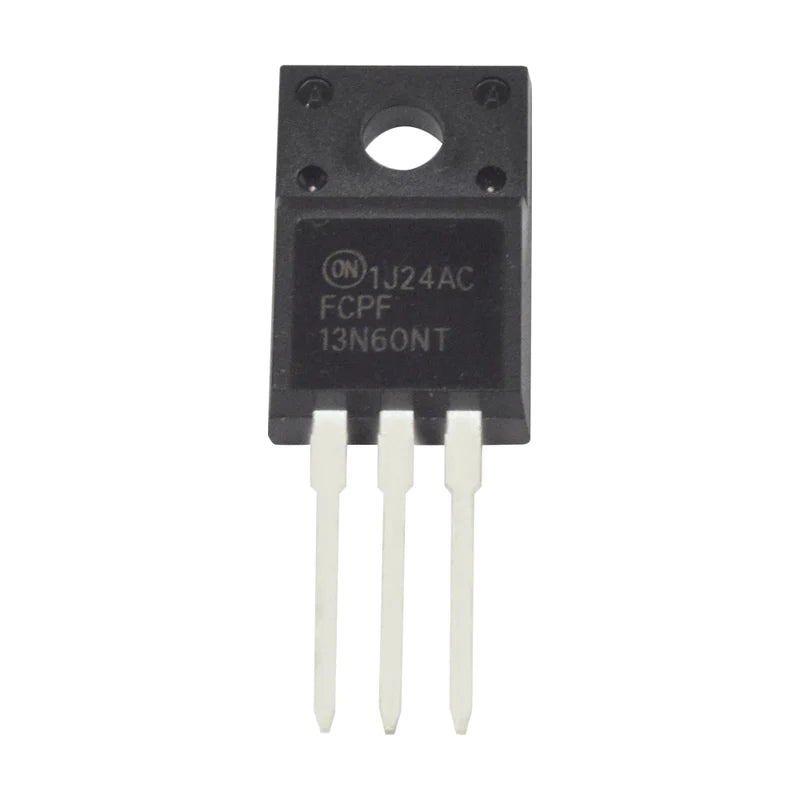

| Model | FCPF13N60NT |
| Type | MOSFET |
| Brand | ONSEMI |
| Package | TO-220-3 |
| Breakdown Voltage | 600V |
| Threshold voltage | 4V |
| Total power dissipation | 33.8W |
| Operating and Storage Temperature Range | -55°C TO 150°C |
