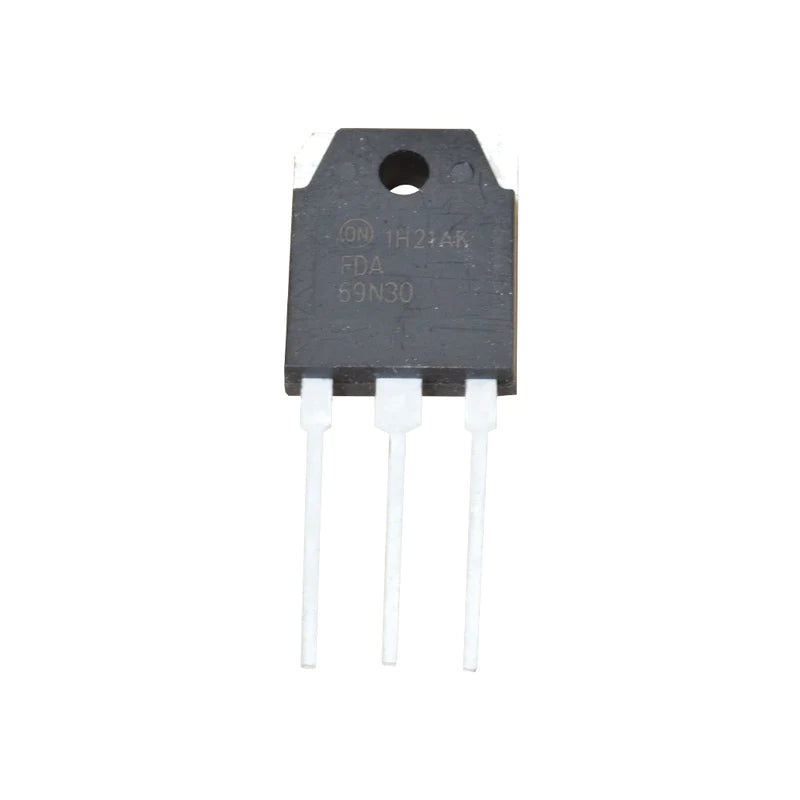

FDA69N30 300V N-Channel MOSFET

FDA69N30 300V N-Channel MOSFET

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description FDA69N30 is a type of MOSFET which is basically designed by the use of DMOS technology its used in switching applications its operating voltage is 300V and the current...
15 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3609
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

FDA69N30 is a type of MOSFET which is basically designed by the use of DMOS technology its used in switching applications its operating voltage is 300V and the current is 59A. its used for high switching applications like in SMPS( switch mode power supply) and in UPS ( Uninterrupted power supply)  This MOSFET is designed to offer superior switching performance, increased avalanche energy strength, and reduced on-state resistance. This family of devices is appropriate for switching Applications for power converters include electronic lamp ballasts, flat panel display (FPD) TV power, ATX, and power factor correction (PFC).

Features

  • Its low gate charge is typically 77nC

  • Its operating voltage is 300V

  •  Its operating current is 59A

  • Its used for fast switching applications

  • Improved DV/DT capability

SPECIFICATION
Model FDA69N30
Type MOSFET
Package TO-3PN
Brand ONSEMI
Input capacitance 4670pF
Output capacitance  920pF
Reverse recovery time 246nS
Operating Voltage 300V
Operating and Storage Temperature Range -55°C TO 150°C
