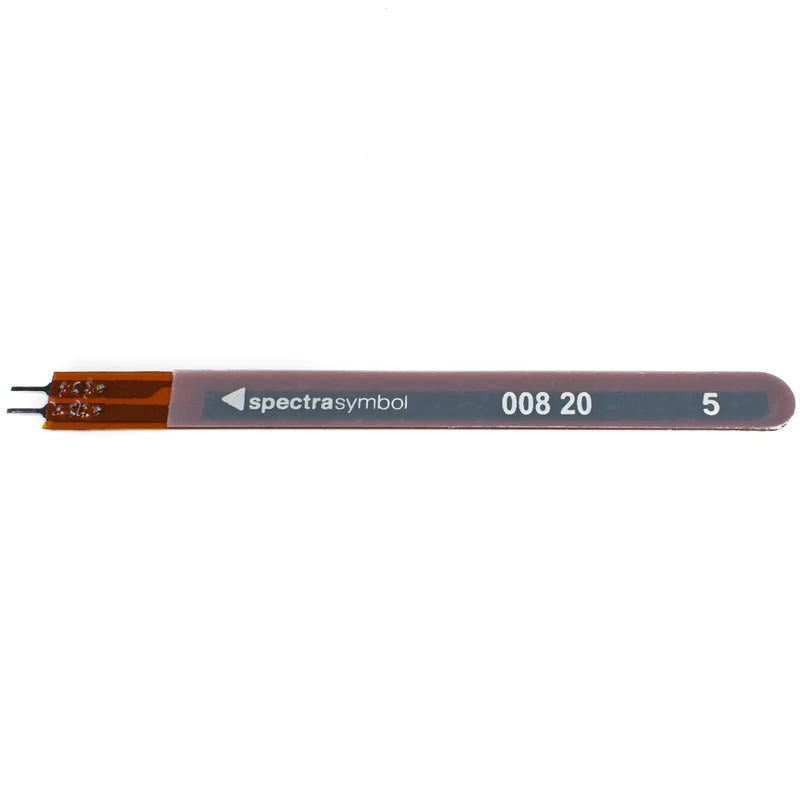

Flex Sensor 2.2€³ Bend Sensor for Hand Gesture Recognition

Flex Sensor 2.2€³ Bend Sensor for Hand Gesture Recognition

₹ 303.00
₹ 355.00 ₹ 303.00
Sold Out
Tax included. Shipping calculated at checkout.
Description It's a Flex Sensor 2.2″ Bend Sensor for Hand Gesture Recognition. The flex sensor is a bend detecting sensor that has got numerous applications in robotics, medical and haptic technology. The...
26 people are viewing this right now

Availability: In stock

SKU: ATC-2291
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Latest Products Miscellaneous Basic Components
View full product details

Description

It's a Flex Sensor 2.2″ Bend Sensor for Hand Gesture Recognition. The flex sensor is a bend detecting sensor that has got numerous applications in robotics, medical and haptic technology. The resistance of these sensors changes in accordance with the bend, which can be measured using any microcontroller.

Specification

  • Flex length :- 5.6 cm
  • Operating voltage :- 0-5V
  • Power rating :- 0.5Watt (continuous), 1 Watt (peak)
  • Life :- 1 million
  • Flat Resistance :- 25K Ω
  • Resistance Tolerance :- ±30%
  • Bend Resistance Range :- 45K to 125K Ohms(depending on bend)
  • Total Length :- 2.2″

*Note: Product Image are shown for illustrative purposes only and may different from the actual product.
