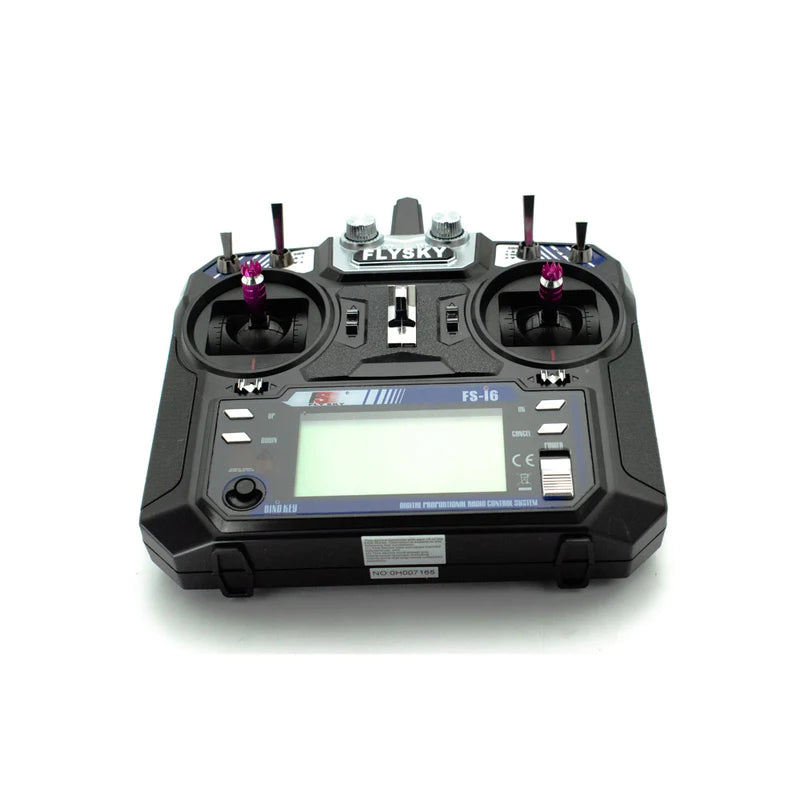

The FS-i6 2.4GHz 6CH PPM RC Transmitter comes with the FS-iA6B Receiver from FlySky. Because of its ease of use and an excellent array of features for a first-time radio, this is a superb entry-level radio for people just getting started in the world of drone flying. FlySky FS-i6 2.4GHz 6CH PPM RC Transmitter is a 6-channel telemetry 2.4GHz transmitter that uses the reliable Automatic Hopping Digital System (AFHDS) and includes such features as digital trims, backlit LCD screen, and simple programming. This kit also includes the new FS-iA6B receiver. This is a small 6-channel receiver with a range of more than 500 meters and a twin antenna for superior reception and interference rejection. Each transmitter has its own unique ID, which the receiver retains when binding and only accepts data from that transmitter.
Features:
FS-I6 Transmitter | |
Model | Fixed-wing/Glider/Heli |
Channel | 6 |
Band | 135 |
RF Range |
2.408-2.475Ghz |
Bandwidth | 500KHz |
2.4GHz System | AFHDS 2A and AFHDS |
RF Power | <20dBm |
Code Type | GFSK |
DSC Port | PS2 |
Output | PPM |
Low Voltage warning | less than 4.2V |
Charger Port | No |
ANT Length | 26x2mm |
Power |
6V 1.5AA x4 |
Certification | CE,FCC |
On-Line Updates |
yes |
Display Mode | Transflective STN positive type, 128x64 dot matrix VA73x39mm, White backlight |
Size | 174x89x190mm |
Weight | 392g |
Channel Order | Aileron-CH1, Elevator-CH2, Throttle-CH3, Rudder-CH4, CH5 & CH6 Open to assignment for other functions |
FS-I6 Receiver | |
Channel |
6 |
Model Type | fixed-wing/glider/Heli |
Frequency |
2.408-2.475GHz |
Band |
135 |
Transmitting Power | <20dBm |
RX Receiver Sensitivity | -105dBm |
2.4GHz System | AFHDS 2A |
Code Type | GFSK |
ANT Length | 26x2mm |
Power | 4.0-6.5V |
Size | 42.6x26.1x15.1mm |
Color | Black |
Certification | CE,FCC |
i-BUS port | Yes |
Data Acquisition port | Yes |
