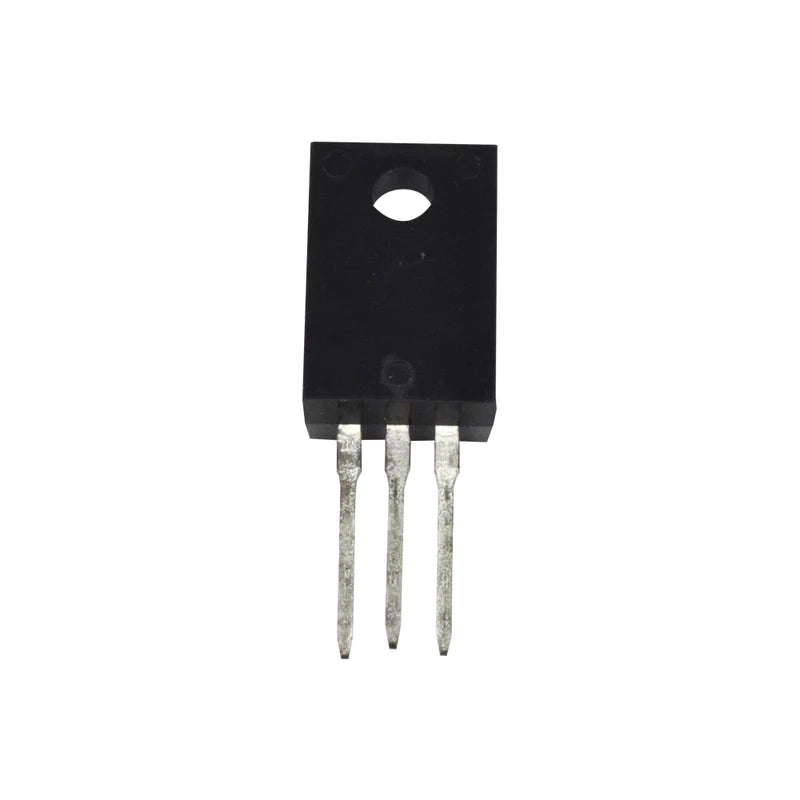

FQPF4N80 2A,800V N-Channel MOSFET

FQPF4N80 2A,800V N-Channel MOSFET

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description FQPF4N80 2A,800V N-CHANNEL enhancement mode power field effect transistors were created  the exclusive planar stripe DMOS process developed by Fairchild.In the avalanche and commutation modes, this cutting-edge technology has been...
19 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3661
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

FQPF4N80 2A,800V N-CHANNEL enhancement mode power field effect transistors were created  the exclusive planar stripe DMOS process developed by Fairchild.
In the avalanche and commutation modes, this cutting-edge technology has been specifically designed to reduce on-state resistance, deliver greater switching performance, and withstand high energy pulses. The high efficiency switch mode power supply is ideal for these devices.

Features

  • Maximum operating voltage is 800V

  • Its forward current is 2A

  • Avalanche tested is 100%

  • Its used in fast switching applications

  • Improved dv/dT capability
  • Low gate charge is 19nC
SPECIFICATION
Model FQPF4N80
Type N-Channel MOSFET
Package TO-220F
Forward current 2A
Maximum lead temperature for soldering 300°C
Avalanche current 2.2A
Total power dissipation 43W
Operating and Storage Temperature Range -55°C TO 150°C
