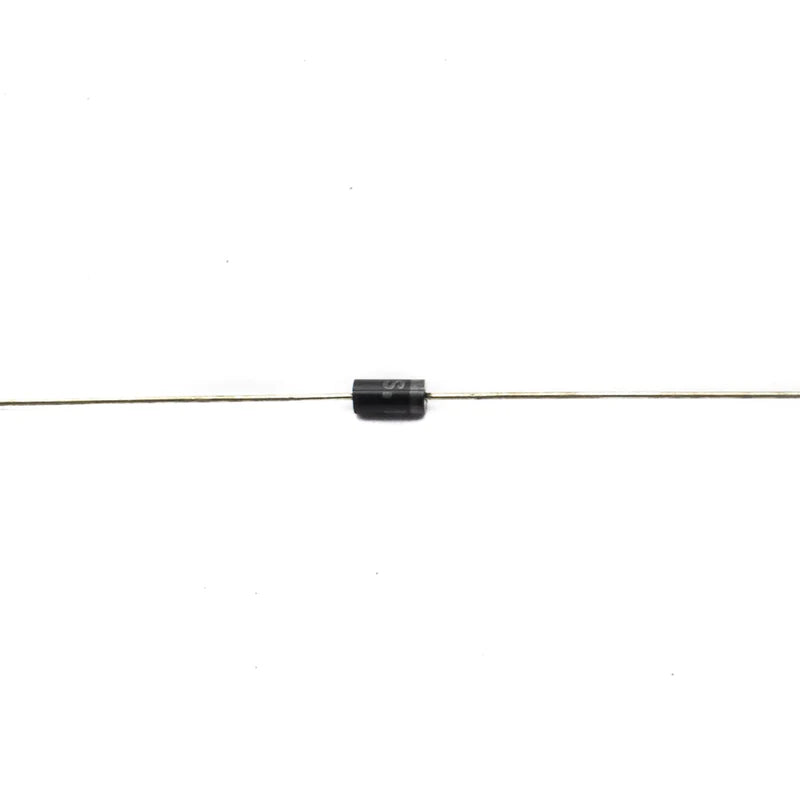

The diode is a device that allows current flow through only one direction. That is the current should always flow from the anode to the cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above. For FR107 Diode, the maximum current carrying capacity is 1A it withstands peaks up to 50A. Hence we can use this in circuits that are designed for less than 1A. The reverse current is 30uA which is negligible.
Features
|
Forward Voltage |
1.3V (1A) |
|
Peak Reverse Voltage |
1000V |
|
Maximum RMS Voltage |
700V |
|
Average Forward Current |
1A |
|
Non-Repetitive Peak Forward Surge Current |
50A |
|
Operating Temperature Range |
-65°C to + 150°C |
|
Low Reverse Leakage Current |
30µA |
