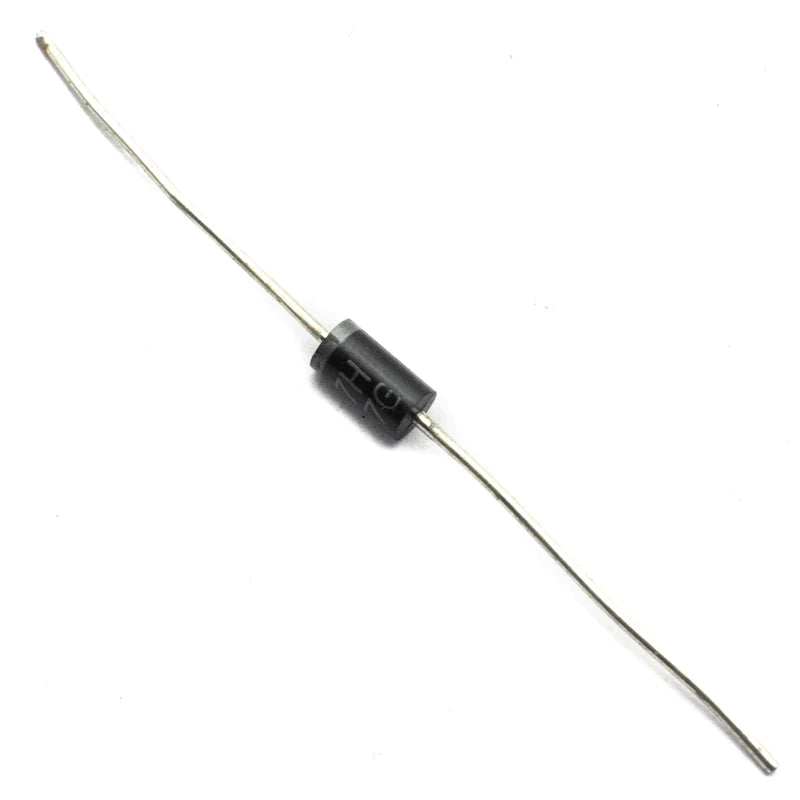

FR207 2A Fast Recovery Rectifier

FR207 2A Fast Recovery Rectifier

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The diode is a device that allows current flow through only one direction. That is the current should always flow from the anode to the cathode. The cathode terminal...
22 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3467
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

Description

The diode is a device that allows current flow through only one direction. That is the current should always flow from the anode to the cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above. For FR207 Diode, the maximum current carrying capacity is 2A it withstands peaks up to 70A. Hence we can use this in circuits that are designed for less than 2A. The reverse current is 5uA which is negligible.

 Features

  • Low forward voltage
  • High current capability
  • Low leakage current
  • High surge capability
  • Lead and body according with RoHS standard

SPECIFICATION

Forward Voltage

1.3V (1A)

Peak Reverse Voltage

1000V

Maximum RMS Voltage

700V

Average Forward Current

2A

Non-Repetitive Peak Forward Surge Current

70A

Operating Temperature Range

-55°C to + 150°C

Low Reverse Leakage Current

5µA
