FT232RL USB TO UART TTL 5V 3.3V Adapter Module For Arduino

FT232RL USB TO UART TTL 5V 3.3V Adapter Module For Arduino

Description USB TO UART TTL 5V 3.3V FT232RL USB To Serial Adapter for Arduino is a basic module for the FTDI FT232RL USB to serial IC, Revision 2. The pinout...
22 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2782
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Communication Module
View full product details

Description

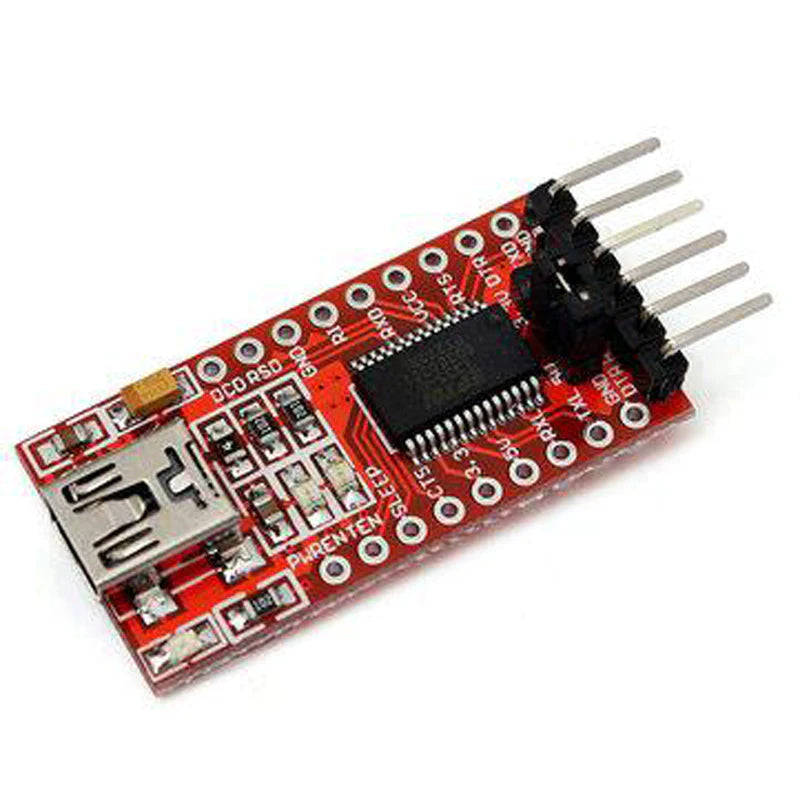

USB TO UART TTL 5V 3.3V FT232RL USB To Serial Adapter for Arduino is a basic module for the FTDI FT232RL USB to serial IC, Revision 2. The pinout of this board matches the FTDI cable to work with Arduino boards.

This board has the DTR pin which allows an auto reset the Arduino when a new sketch is uploaded in the Arduino. Thus there is no need to hit the reset button while uploading the code in Arduino. This module supports both 3.3V and 5V (both power output and IO level).

The pins labelled BLK and GRN correspond to the coloured wires on the FTDI cable. The black wire on the FTDI cable is GND, green is CTS. Use these BLK and GRN pins to align the FTDI basic board with your Arduino target.

SPECIFICATIONS
IC Chip FT232RL
Interface Type Mini USB
Operating Voltage Both 3.3V & 5V
Maximum Current 500 mA
Dimension (LxW) 36x18 (mm)
