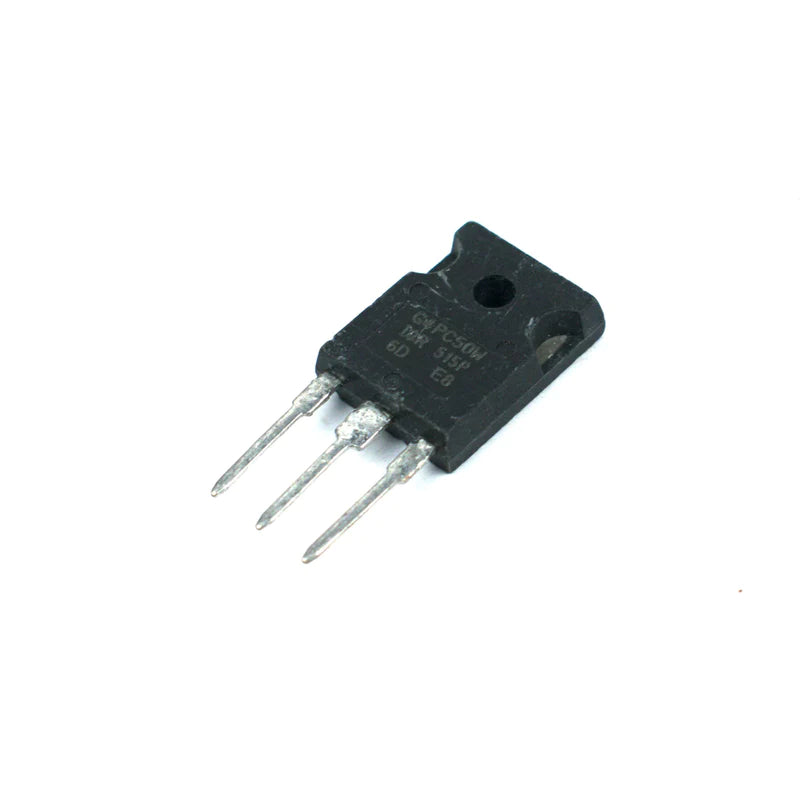

G4PC50W, 600V 55A N-Channel IGBT

G4PC50W, 600V 55A N-Channel IGBT

₹ 283.00
₹ 311.00 ₹ 283.00
Sold Out
Tax included. Shipping calculated at checkout.
Description G4PC50W is an N-Channel Insulated Gate Bipolar Transistor(IGBT). It is a Through-hole(THD) IGBT Transistor which consists of three terminals Emitter, Gate, and Collector. It has low conduction losses and...
28 people are viewing this right now

Availability: In stock

SKU: ATC-3556
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

G4PC50W is an N-Channel Insulated Gate Bipolar Transistor(IGBT). It is a Through-hole(THD) IGBT Transistor which consists of three terminals Emitter, Gate, and Collector. It has low conduction losses and minimal minority-carrier recombination that makes it an excellent option for resonant mode switching as well (up to >300 K Hz)

Datasheet

Features

  • Designed expressly for switch-mode power supply and PPF (power factor correction) applications
  • Industry-benchmark switching losses improve the efficiency of all power supply topologies
  • 50% reduction of the Eoff parameter
  • Low IGBT conduction losses
  • Latest generation IGBT design and construction offer tighter parameters distribution, exceptional reliability
  • Lead-free
SPECIFICATIONS
Model IRG4PC50W
Brand International Rectifier
Transistor Type N-Channel IGBT
Collector to Emitter Breakdown (VCES) 600V
Continuous Collector Current (IC) 55A
Pulsed Collector Current (ICM) 220A
Power @max 200W
Mounting Type Through Hole
Operating Temperature -55~150 degree C
Package  TO-247AC
