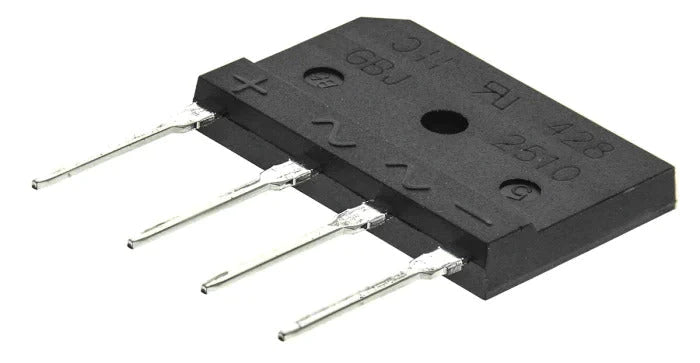

GBJ2510 1000V 25 A Single Phase Bridge Rectifier

GBJ2510 1000V 25 A Single Phase Bridge Rectifier

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The GBJ2510  is a Single-Phase Bridge Rectifier. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum average current this...
17 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3714
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Bridge Rectifier
View full product details

Description

The GBJ2510  is a Single-Phase Bridge Rectifier. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum average current this IC can handle is around  25A. This IC has a low forward voltage drop of 1V. It has high efficiency and a  surge current capability of 350 A. If you are looking for a compact IC for rectification application this can be a good choice.          This single phase bridge rectifier is mainly used in charger circuits , uninterruptible power supply , led and lcd TVs, audio amplifier and radios.

Features

  • Glass Passivated Die Construction
  • Low Reverse Leakage Current
  • Surge Overload Rating to 350A Peak
  • Ideal for Printed Circuit Board Applications
  • Lead Free Finish, RoHS Compliant
SPECIFICATIONS:
Model GBJ2510
Type Bridge Rectifier Diode
Working Peak Reverse Voltage 1000 V
RMS Reverse Voltage V(RMS) 700 V
Average Forward Rectified Output Current 25A
Peak Reverse Current at 25°C 10µA
Operating and Storage Temperature Range -40°C TO 150°C
