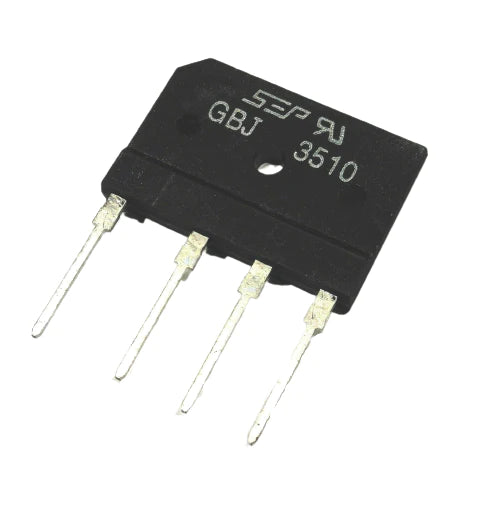

GBJ3510 1000V 35A Bridge Rectifier

GBJ3510 1000V 35A Bridge Rectifier

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description A bridge rectifier diode frequently used in single-phase applications is the GBJ3510. Since this IC can sustain an AC voltage of up to 700V, it can be employed in a variety of applications. This...
17 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3741
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Bridge Rectifier
View full product details

Description

A bridge rectifier diode frequently used in single-phase applications is the GBJ3510. Since this IC can sustain an AC voltage of up to 700V, it can be employed in a variety of applications. This IC can tolerate a maximum DC current of 35A. This IC features a low forward voltage loss of 1.1V and a reverse breakdown value of 1000V. It features a high surge current capacity of 400A and great efficiency. This can be a decent option if you're seeking for a small IC for rectification applications.

Features

  • Glass Passivated Die Construction
  • High Case Dielectric Strength of 2500 VRMS
  • Low Reverse Leakage Current
  • Surge Overload Rating to 400A Peak
  • Ideal for Printed Circuit Board Applications
SPECIFICATION
Model GBJ3510
Type Bridge Rectifier Diode
Working Peak Reverse Voltage 1000 V
RMS Reverse Voltage V(RMS) 700 V
Average Forward Rectified Output Current 35 A
Peak Reverse Current at 25°C 10µA
Operating and Storage Temperature Range -55°C TO 150°C
