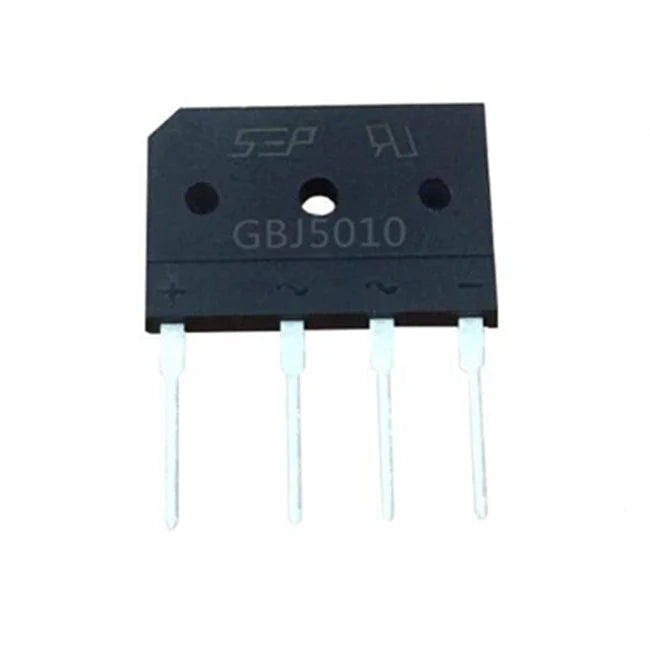

A Single Phase Bridge Rectifier is the GBJ5010. This IC can be utilised for a variety of applications because its maximum input AC RMS voltage is 700V. This IC can withstand a maximum average current of about 50A. This IC features a low forward voltage loss of 1.1V and a reverse breakdown value of 1000V. It is highly efficient and can handle 400 A of surge current. This can be a decent option if you're seeking for a small IC for rectification applications.
The uninterruptible power supply, led and LCD TVs, audio amplifiers, and radios are the principal applications for this single phase bridge rectifier.
Features
| Model | GBJ5010 |
| Type | Bridge Rectifier Diode |
| Working Peak Reverse Voltage | 1000 V |
| RMS Reverse Voltage VR(RMS) | 700 V |
| Maximum DC Blocking Voltage | 1000V |
| Average Forward Rectified Output Current | 50A |
| Peak Reverse Current @ 25°C | 10µA |
| Operating and Storage Temperature Range | -40°C TO 150°C |
