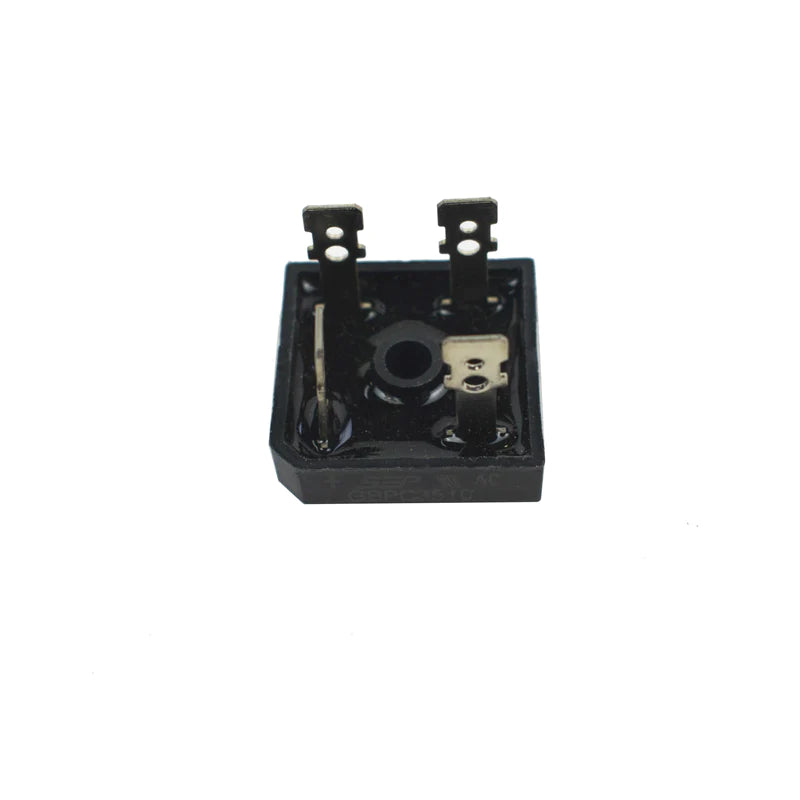

The GBPC3510W is a Single Phase Bridge Rectifier .The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum average current this IC can handle is around 35A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.2V. It has high efficiency and a surge current capability of 400 A. If you are looking for a compact IC for rectification application this can be a good choice. This single phase bridge rectifier is mainly used in charger circuits , uninterruptible power supply , led and lcd TVs, audio amplifier and radios.
Features
| Model | GBPC3510W |
| Type | Bridge Rectifier Diode |
| Working Peak Reverse Voltage | 1000 V |
| RMS Reverse Voltage VR(RMS) | 700 V |
| Average Forward Rectified Output Current | 35A |
| Peak Reverse Current at 25°C | 10µA |
| No. of Pins | 4Pins |
| Operating and Storage Temperature Range | -55°C TO 150°C |
