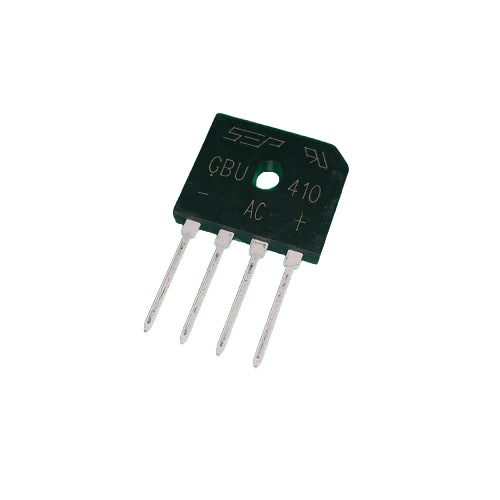

GBU410 4.0A Single Phase Rectifier Diode

GBU410 4.0A Single Phase Rectifier Diode

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description A bridge rectifier diode frequently used in single-phase applications is the GBU410. Since this IC can sustain an AC voltage of up to 700V, it can be employed in a variety of applications. This...
16 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3725
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Bridge Rectifier
View full product details

Description

A bridge rectifier diode frequently used in single-phase applications is the GBU410. Since this IC can sustain an AC voltage of up to 700V, it can be employed in a variety of applications. This IC can handle a maximum DC current of 4A. This IC features a low forward voltage loss of 1.1V and a reverse breakdown value of 1000V. It features a high surge current capacity of 150A and great efficiency. This could be an excellent option if you're seeking for a small IC for rectification applications.

Features

  • Glass Passivated Die Construction
  •  High Case Dielectric Strength of 1500 VRMS
  •  Low Reverse Leakage Current
  •  Surge Overload Rating to 150A Peak
  •  Ideal for Printed Circuit Board Applications
SPECIFICATION
Model GBU410
Type Bridge Rectifier Diode
Working Peak Reverse Voltage 1000 V
RMS Reverse Voltage V(RMS) 700 V
Average Forward Rectified Output Current 4A
Peak Reverse Current at 25°C 5µA
Operating and Storage Temperature Range -55°C TO 150°C
