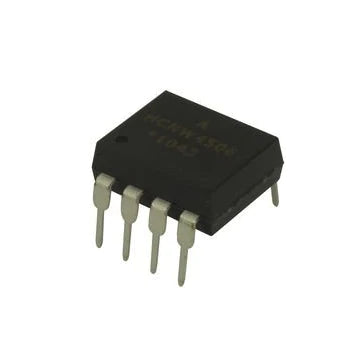

HCNW4506 is a logic output optocouplers. The HCNW4506 includes an AlGaAs LED. The LED is optically coupled to an integrated high-gain photodetector. Because of the reduced propagation delay difference between devices, this optocoupler is an excellent solution for improving inverter efficiency through reduced switching dead time.
By shorting output pins 6 and 7, an on-chip 20 k ohm output pull-up resistor can be enabled, removing the need for an external pull-up resistor in common IPM applications.
| Output Type |
Integrated Photo IC |
| Number of Channels | 1 Channel |
| Maximum Continuous Output Current |
15 mA |
| Forward Current | 20 mA |
| Forward Voltage | 1.85 V |
| Reverse Voltage | 3 V |
| Power Dissipation | 145 mW |
| Min/Max operating temprature | -40°C to 100° C |
| Dimensions | 4mm*11.5mm*9mm |
| Weight | 1 gm |
| Current transfer ratio | 90% |
