Description :-

HDR-60 is one economical ultra-slim 60W DIN rail power supply series, adapted to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 52.5 mm (3SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264 VAC (277 VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current

Spcification :-

• Manufacturer Part No :- HDR-60-12

• Manufacturer :- MEAN WELL

• Primary Output Voltage :- 12 V

• Output Current :- 4.5 A

• Maximum Output Power :- 54 W

• Family :- HDR-60

• Input Voltage :- 100 to 240 W

• Input Frequency :- 50 to 60 Hz

• Input Current :- 1.8 A

• Output Connector Type :- Screw Terminal

• Agency Approvals :- UL/CUL/TUV/CB/CE

• Efficiency :- 88 %

• Operating Temperature Range :- -30ºC ~ 70ºC

• Color :- Gray

• Mounting Type :- Din Rail

• Length :- 90 mm

• Width :- 52 mm

• Height :- 60 mm

• Approx Weight :- 200 gm

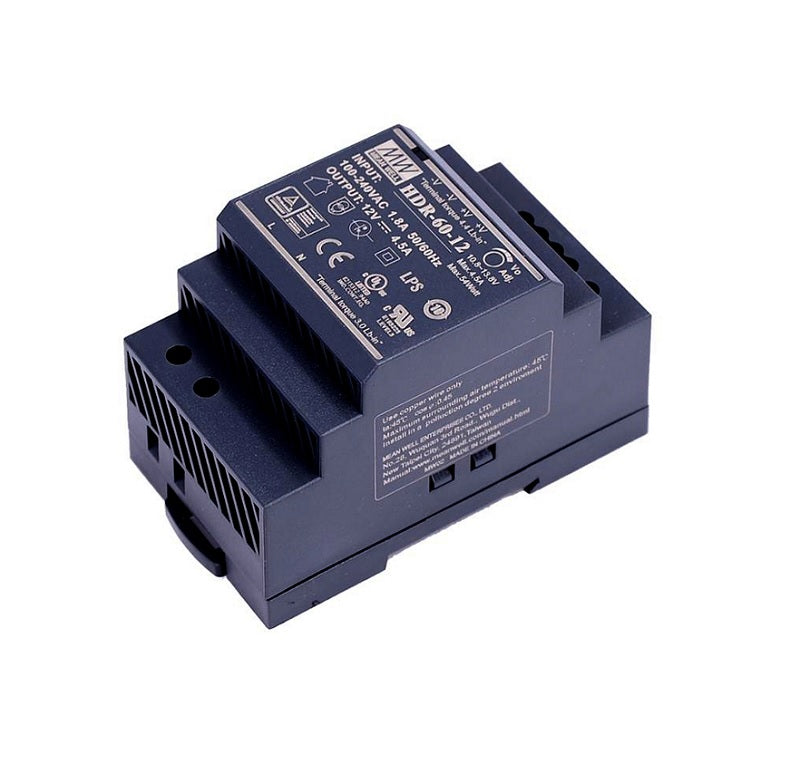

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
