Description

HDR-60-5 is one economical ultra-slim 32.5W DIN rail power supply series, adapted to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 52.5 mm (3SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264 VAC (277 VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. Tags, HDR-60-5, HDR-60 5, HDR 60-5, HDR 60 5. 5V SMPS, 5V 6A SMPS, 5V 5A SMPS.

Features

• Manufacturer Part No: HDR-60-5
• Manufacturer: Mean Well
• Input Voltage Range: 85 ~ 264VAC
• Frequency Range: 47-63 Hz
• Output Voltage Range: 5V ~ 5.5VDC
• Output Current: 6.5A
• Power Rating: 32.5 Watts
• Number of outputs: 1
• Type of power supply: Switched-mode
• Mounting Type: DIN Rail Mounting
• Electrical Connection: Terminal Block
• Operating Temperature: -30 ~ 70°C
• Protection Type: Anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP
• Efficiency: 85%
• Width: 52.5mm
• Height: 90mm
• Depth: 54.5mm
• Weight: 200 gm

Specifications

• AC input voltage range :- 85 VAC to 264 VAC, 120 VDC to 370 VDC

• AC inrush current (max.) :- COLD START 30A/115VAC 60A/230VAC

• TEMP. COEFFICIENT :- 0.03%/ (0 ~ 50) RH non-condensing

• Overload protection Range :- 105 ~ 160% rated output power

• Overload protection Type :- Constant current limiting, recovers automatically after fault condition is removed

• Over voltage protection Range :- 5.75 ~ 6.75V

• Over voltage protection Type :- Shut down o/p voltage, re-power on to recover

• Withstand voltage :- I/P-O/P:3KVAC

• Working temperature :- 30 ~ +70 (Refer to "Derating Curve")

• Safety standards :- UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178,TUV EN60950-1

• EMC standards :- EN55032(CISPR32), EN55032(CISPR32), EN61000-3-2, EN61000-3-3

• SETUP, RISE TIME :- 500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load

• Dimension (LxWxH) :- 52.5x90x54.5

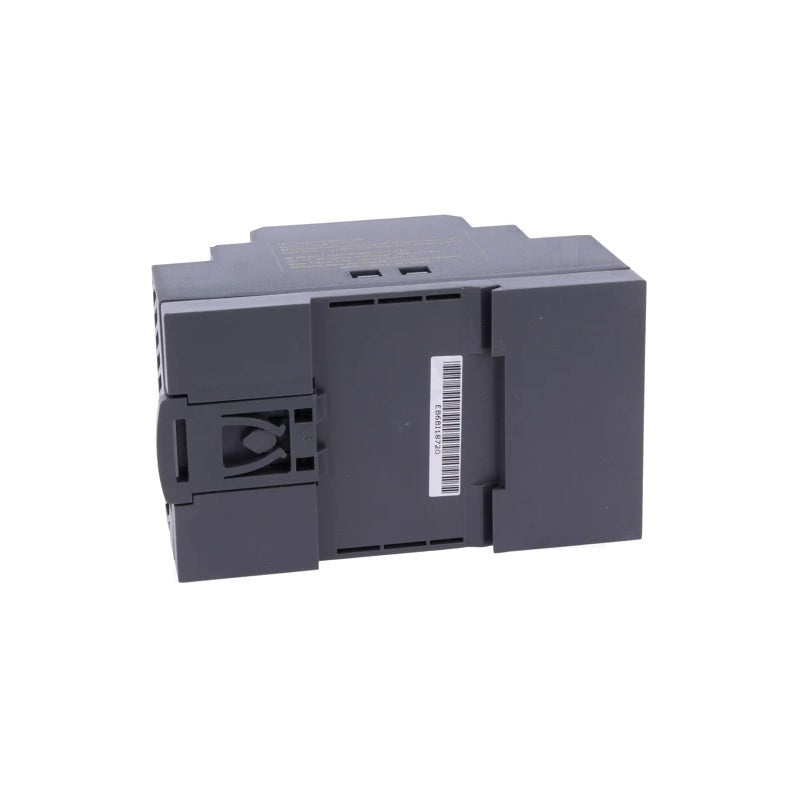

(Note: Product Image are shown for illustrative purposes only and may different from the actual product)
