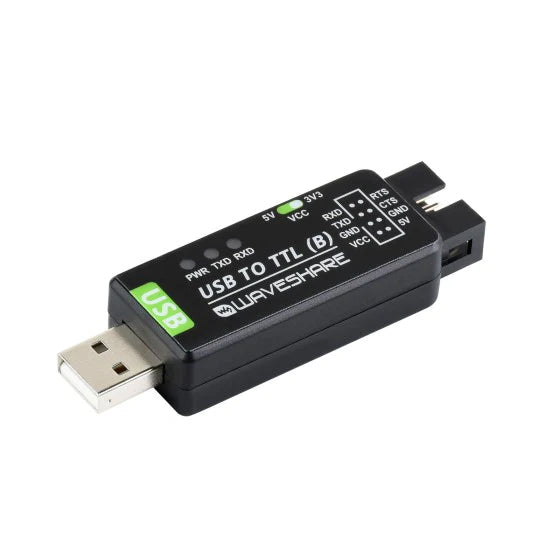

Industrial USB TO TTL (B) Converter

Industrial USB TO TTL (B) Converter

Description It's a  USB TO TTL Converter, Original CH343G Onboard, Multi-Protection & Systems Support. In there, the onboard 5V/3.3V can be selected by the jumper cap, or the jumper cap can...
26 people are viewing this right now

Availability: In stock

Ask For Price
SKU: ATC-2792
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Miscellaneous Module
View full product details

Description

It's a  USB TO TTL Converter, Original CH343G Onboard, Multi-Protection & Systems Support. In there, the onboard 5V/3.3V can be selected by the jumper cap, or the jumper cap can be unplugged, and the external voltage input can also be used (2.5V/1.8V, except industrial grade.

Features:-
  • Onboard resettable fuse and TVS diode, providing protections including over-current, over-voltage, backwards-proof, and ESD protection, improving shock resistance and safe and stable communications.
  • Onboard IO protection circuit for surge suppression.
  • Onboard TTL serial port 3.3V and 5V voltage level switch allow selecting TTL level.
  • 3 x LED indicators for easily checking power connection and signal TX/RX statuses.
  • Quality plastic case with a dull-polish surface, well-crafted.
  • IDC connector with fool-proof design.
      SPECIFICATION
      Product
      		 USB TO TTL (B) Converter
      Brand Waveshare
      No. of Pins 08
      Supply Voltage 5V
      Communication Rate 50bps ~ 6Mbps
      Serial port TTL level 5V/3.3V/2.5V/1.8V
      Operating system Mac OS, Linux, Windows 11 / 10 / 8.1 / 8 / 7, Android
      Host Interface USB
      Device Interface UART
      Indicator Power, RXD & TXD
