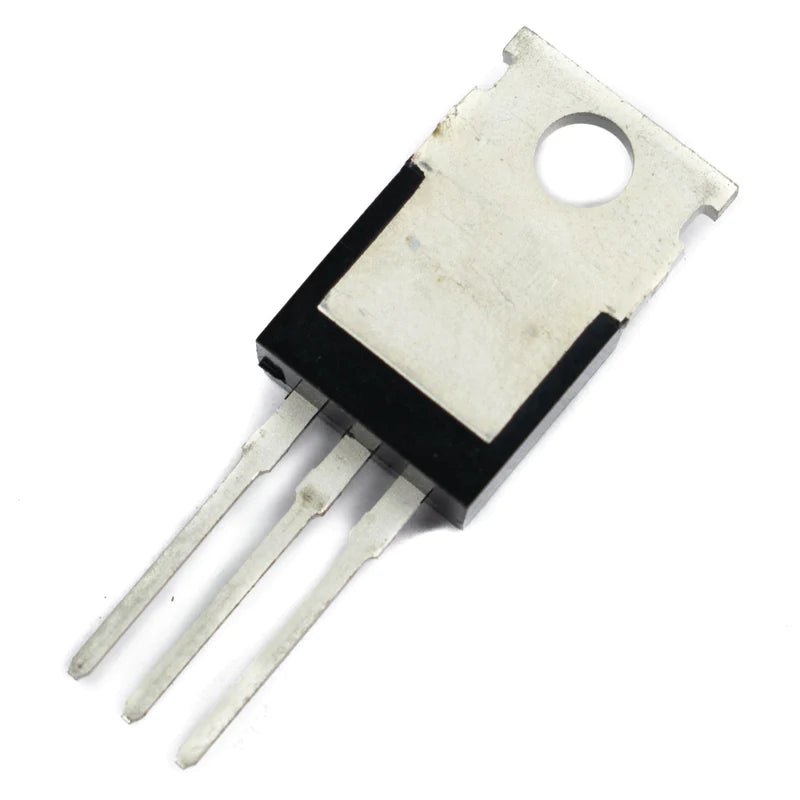

Infineon IRFB4115 N-Channel MOSFET

Infineon IRFB4115 N-Channel MOSFET

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The IRFB4115PBF is a 150V single N-channel HEXFET® Power MOSFET with extremely low on-resistance per silicon area and fast switching performance using Trench MOSFET technology. Suitable for high efficiency...
25 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3680
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

The IRFB4115PBF is a 150V single N-channel HEXFET® Power MOSFET with extremely low on-resistance per silicon area and fast switching performance using Trench MOSFET technology. Suitable for high efficiency synchronous rectification in SMPS, uninterruptible power supply, high speed power switching, hard switched and high frequency circuits.

Features

  • Improved gate, avalanche and dynamic dv/dt ruggedness
  • Fully characterized capacitance and avalanche SOA
  • Enhanced body diode dV/dt and dI/dt capability
  • Halogen-free

Applications

  • Power Management
  • High Efficiency Synchronous Rectification in SMPS
  • Uninterruptible Power Supply
  • High Speed Power Switching
  • Hard Switched and High Frequency Circuits
SPECIFICATIONS
Model IRFB4115
Brand Infineon
Transistor Type MOSFET
Type of Control Channel N-Type
Max. Drain-Source Voltage 150V
Max. Gate-Source Voltage 20V
 Continuous Drain Current, VGS @ 10V 74-104A
No. of Pins 3 pins
Pulsed Drain Current 420A
Max. Operating Junction Temperature 175°C
Rise Time 73ns
Max. Drain-Source On-state Resistance 0.0093 ohm
Max. Power Dissipation 380W
Package TO-220
Mounting Through Hole
