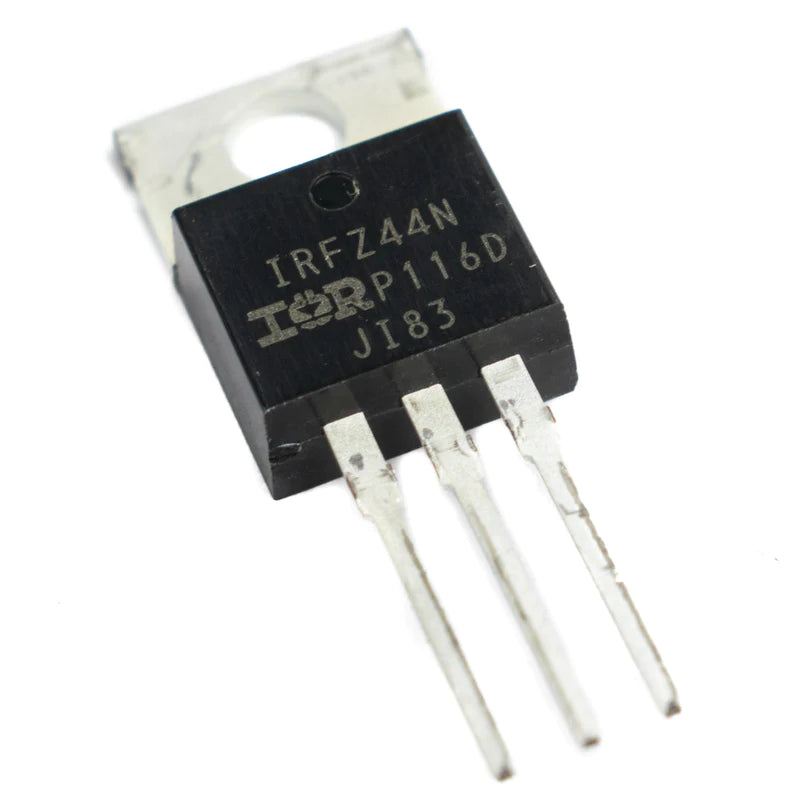

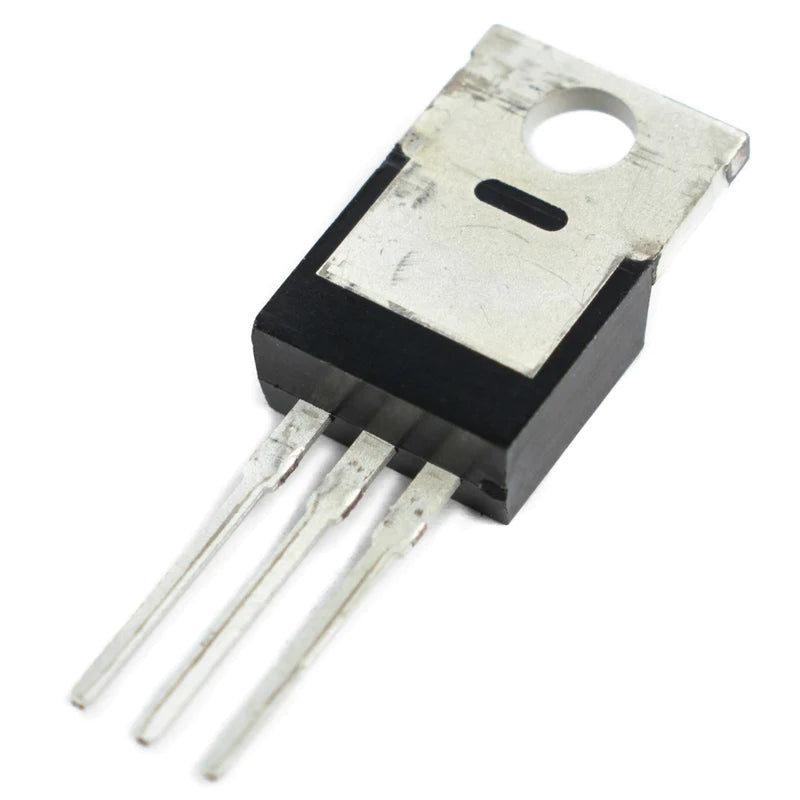

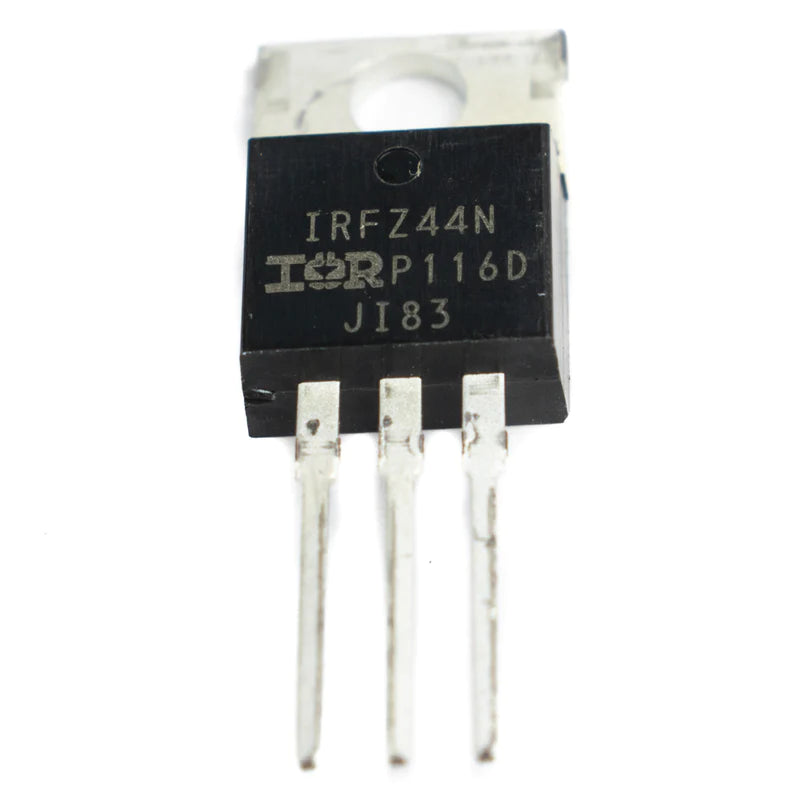

Infineon IRFZ44N 55V Single N-Channel Power MOSFET TO-220

Infineon IRFZ44N 55V Single N-Channel Power MOSFET TO-220

₹ 19.80
₹ 22.00 ₹ 19.80
Sold Out
Tax included. Shipping calculated at checkout.
Description The IR MOSFET family of power MOSFETs utilises proven silicon processes offering designers a wide portfolio of devices to support various applications such as DC motors, inverters, SMPS, lighting,...
26 people are viewing this right now

Availability: In stock

SKU: ATC-3587
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

The IR MOSFET family of power MOSFETs utilises proven silicon processes offering designers a wide portfolio of devices to support various applications such as DC motors, inverters, SMPS, lighting, load switches, and battery-powered applications. The devices are available in various surface-mount and through-hole packages with industry-standard footprints for ease of design.

Features

  • Planar cell structure for wide SOA
  • Product qualification according to JEDEC standard
  • Silicon optimised for applications switching below <100kHz
  • High-current rating
  • Increased ruggedness
  • Wide availability from distribution partners
  • High performance in low-frequency applications
  • Standard pin-out allows for drop-in replacement
  • High current capability
SPECIFICATIONS
Model IRFZ44N
Brand Infineon
ID (@25°C)   max 49 A
Mounting Through Hole
Ptot   max 83 W
Package TO-220
Polarity N
QG (Typ@10V) 42 nC
Qgd 15.3 nC
RDS (on) (@10V)   max 17.5 mΩ
RthJC   max 1.8 K/W
Tj   max 175 °C
VDS   max 55 V
VGS(th)   min  max 3 V   2 V   4 V
VGS   max 20 V
