Inline Fuse Holder

Inline Fuse Holder

Description 5*20mm 5A 220V Fuse Box Fuse Seat Belt Line Full Copper Strip Spring Home Protection Inline Fuse Holder with Copper Wire Components. This is an inline 20×5 mm fuse...
26 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2411
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Fuse & Fuse Holder
View full product details

Description

5*20mm 5A 220V Fuse Box Fuse Seat Belt Line Full Copper Strip Spring Home Protection Inline Fuse Holder with Copper Wire Components.

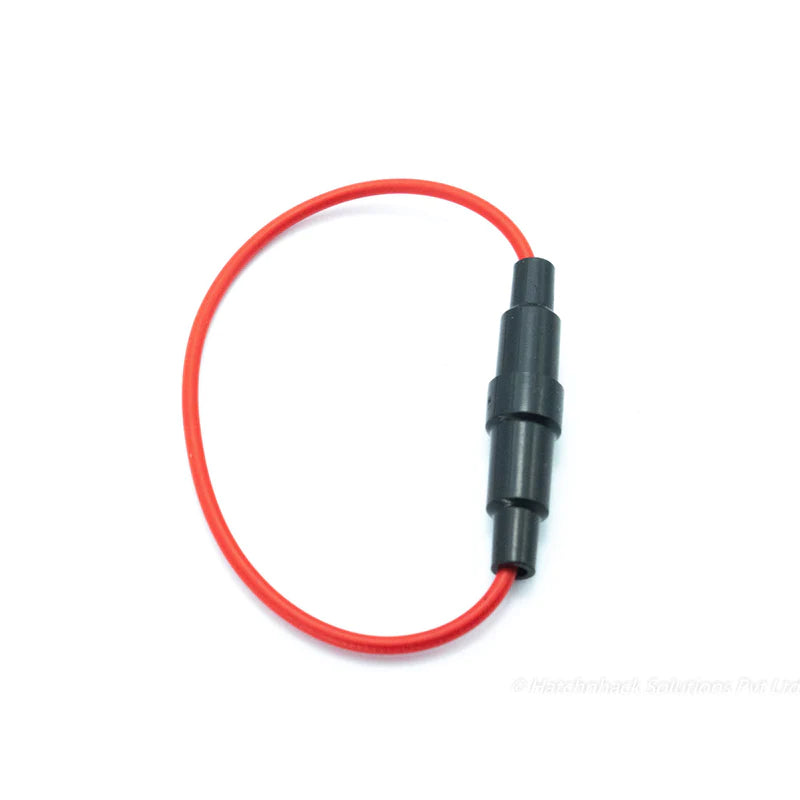

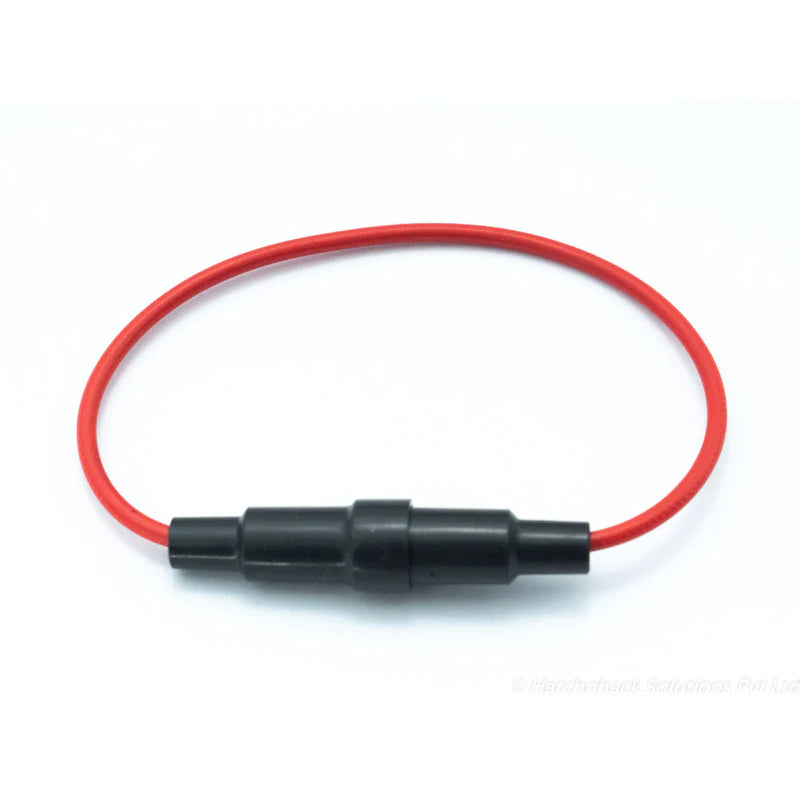

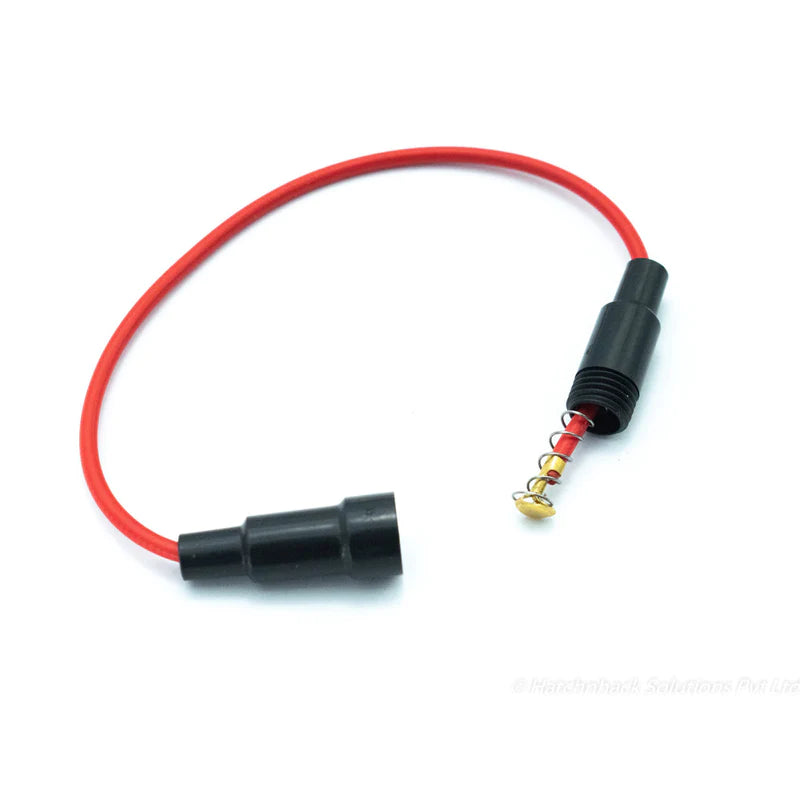

This is an inline 20×5 mm fuse holder. It's useful where the space for mounting fuse holder is not available in the device. We can connect this fuse holder directly via soldering it to the connections in series, by cutting it in half. One end of the fuse holder is soldered with wire, and another end is fitted into the device or connector, making a series connection. The inline Fuse Holder supports a fuse size of 20 x 5 mm. The max Current Rating is 5A @ 250V.

SPECIFICATION
Voltage Rating  230V
Current Rating 5A
Fuse Size 5mmx20mm
Lead Wire Size 16AWG
