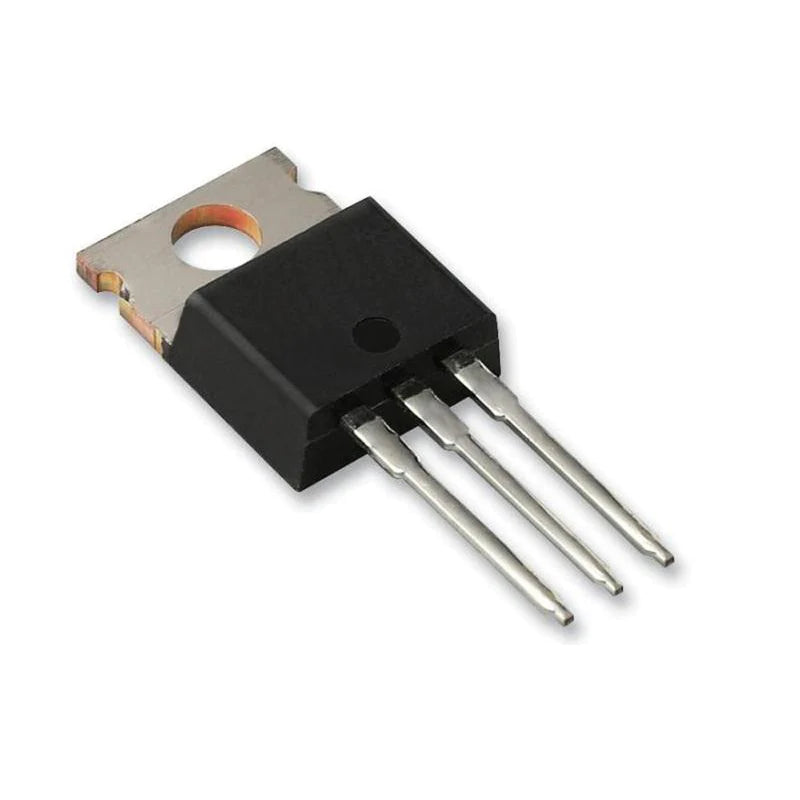

IRF540 N-Channel 33A 100V Power MOSFET

IRF540 N-Channel 33A 100V Power MOSFET

₹ 0.00
₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description IRF540 third-generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance, and cost-effectiveness. The TO-220 package is universally preferred for all...
27 people are viewing this right now

Availability: In stock

SKU: ATC-3707
Vendor: ArrowTechCart
Guarantee safe & secure checkout

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

IRF540 third-generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance, and cost-effectiveness. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W.

Features

  • It has 100% avalanche rated
  • It has Fast switching system
  • Ease of paralleling
  • New high voltage benchmark
  • Simple drive requirements
  • Low on-resistance

Applications

  • Switching high power devices
  • Motor speed control
  • LED dimmer and flasher
  • Converters and inverters circuits
SPECIFICATION
Part Number  IRF540
Package TO-220-3
Polarity N Channel
Drain-Source Breakdown Voltage 100 V
Continuous Drain Current 33 A
Gate-Source Voltage 20 V
Power Dissipation 140 W
Gate Charge 47.3 nC
