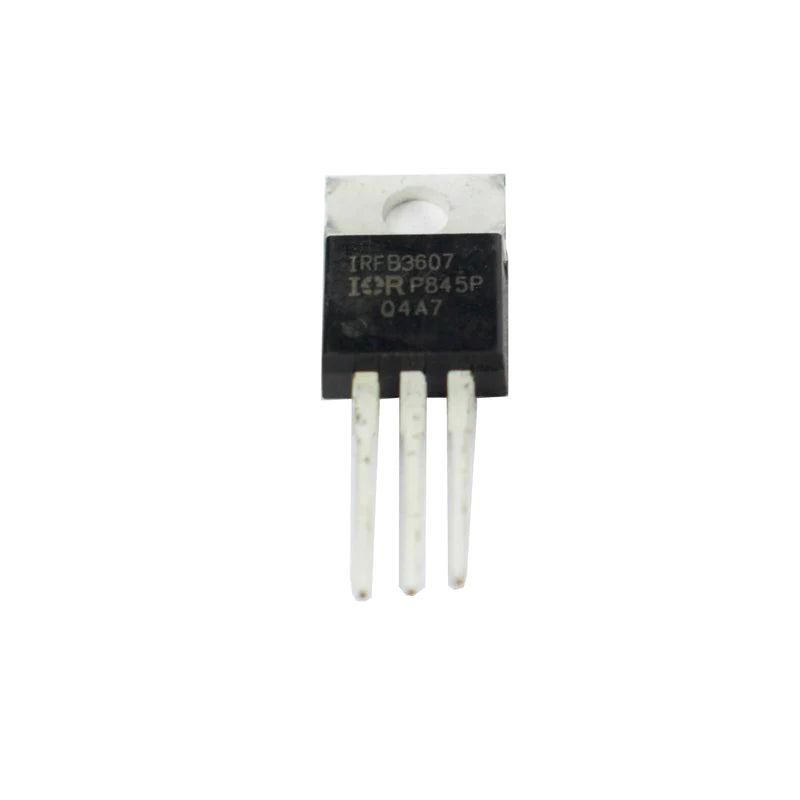

IRFB3607 75V 80A N-Channel MOSFET

IRFB3607 75V 80A N-Channel MOSFET

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description An N-Channel MOSFET creates a current channel by using electrons. Electrons can move fast and readily via the current when the MOSFET is active and switched on. Because of...
20 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3639
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

An N-Channel MOSFET creates a current channel by using electrons. Electrons can move fast and readily via the current when the MOSFET is active and switched on. Because of the unique features of N-Channel MOSFETs, carrier mobility is approximately 2 to 3 times that of a P-channel for the same RDS(on) value, hence the P-Channel chip must be 2 to 3 times the size of the N-Channel. As a result, adopting MOSFET transistor N-Channels for high current applications is frequently the favored option.

Features

  • Improved Gate, Avalanche and Dynamic dv/dt Ruggedness
  • Fully Characterized Capacitance and Avalanche SOA
  • Enhanced body diode dV/dt and dI/dt Capability
  • Lead-Free
  • Halogen-Free

Applications

  • High-Efficiency Synchronous Rectification in SMPS
  • Uninterruptible Power Supply
  • High-Speed Power Switching
  • Hard Switched and High-Frequency Circuits
SPECIFICATIONS
Model IRFB3607
Transistor Type MOSFET
Channel Type N-Channel
Max. Power Dissipation (Pd) 140W
Max. Drain Source Voltage (Vds) 75V
Max. Gate Source Voltage (Vgs) 20V
Max. Drain Current (Id) 80A
Total Gate Charge (Qg) 56nC
