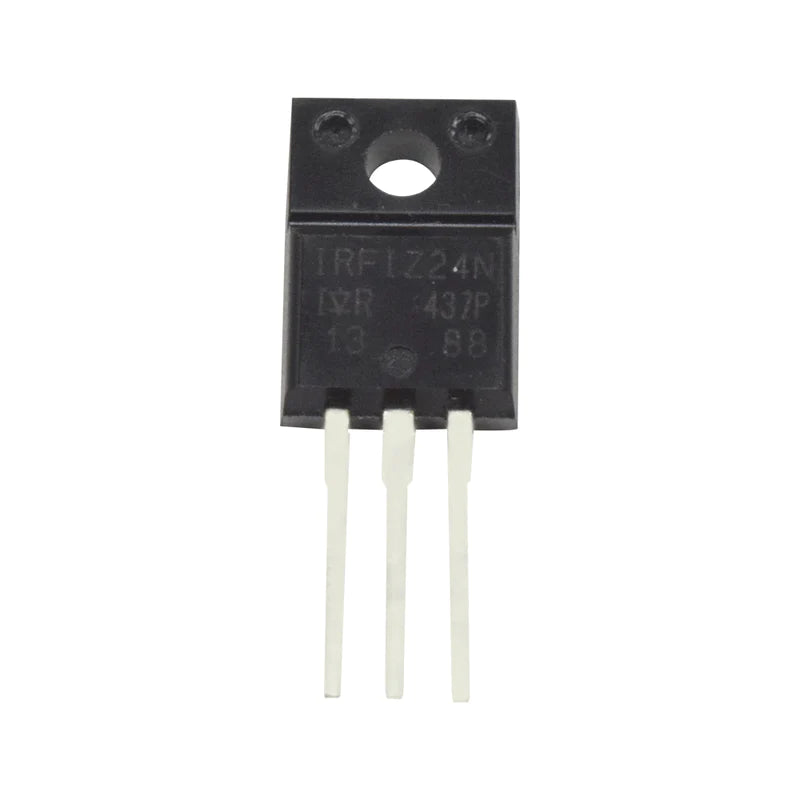

IRFIZ24N Power MOSFET

IRFIZ24N Power MOSFET

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device...
29 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3605
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 Full eliminates the need for additional insulating hardware in commercial-industrial applications. The moulding compound used provides a high isolation capability and a low thermal resistance between the tab and external heatsink. This isolation is equivalent to using a 100 micron mica barrier with standard TO-220 product. This is mounted to a heatsink using a single clip or by a single screw fixing.

Features

  • It has isolated package

  • Avalanche energy rated

  • High voltage isolation 2.5KVRMS

  • Sink to lead creepage distance 4.8mm

  • It has small size
SPECIFICATION
Model IRFIZ24N
Type Power MOSFET
Package TO-220Fullpak
Peak diode recovery 5V/ns
Avalanche current  10A
Pulse drain current 68A
Total power dissipation 29W
Operating and Storage Temperature Range -55°C TO 175°C
