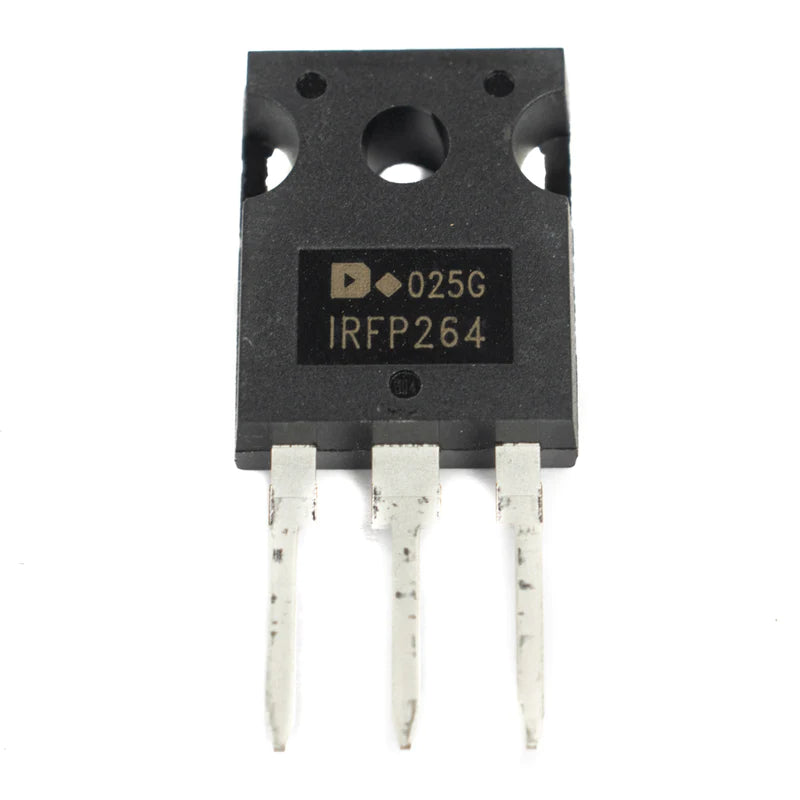

IRFP264 TO247 N-Channel Power MOSFET

IRFP264 TO247 N-Channel Power MOSFET

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description IRFP264 N channel is specifically designed for automotive applications that utilize the latest processing techniques to achieve extremely low on-resistance per silicon area. It provides the best combination of...
20 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3668
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

IRFP264 N channel is specifically designed for automotive applications that utilize the latest processing techniques to achieve extremely low on-resistance per silicon area. It provides the best combination of fast switching, ruggedized device design, low on-resistance, and cost-effectiveness. The TO-220AB package is universally preferred for commercial-industrial applications at power dissipation levels to approximately 50 W.  The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.

Features

  • Advanced Process Technology
  • Ultra-Low On-Resistance
  • 175°C Operating Temperature
  • Fast Switching
  • Lead-Free, RoHS Compliant
SPECIFICATION
Part Number IRFP264
Polarity N-Channel
Drain Source Breakdown Voltage 250 V
Continuous Drain Current 38 A
Drain Source Resistance 0.075 ohms
Gate Source Voltage 20 V
Power Dissipation (Pd) 280 W
Package TO-247 AC
Operating Temperature Range -55 °C - 150 °C
