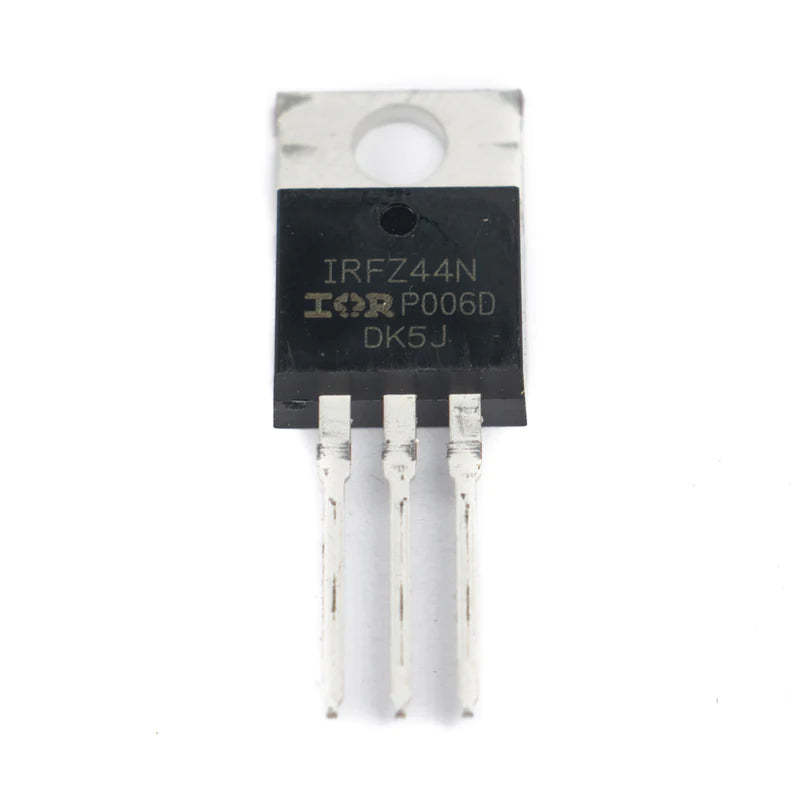

IRFZ44 49A 55V N Channel Power MOSFET

IRFZ44 49A 55V N Channel Power MOSFET

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description IRFZ44 N channel is specifically designed for automotive applications that utilize the latest processing techniques to achieve extremely low on-resistance per silicon area. It provides the best combination of fast...
28 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3710
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Triac & Mosfet
View full product details

Description

IRFZ44 N channel is specifically designed for automotive applications that utilize the latest processing techniques to achieve extremely low on-resistance per silicon area. It provides the best combination of fast switching, ruggedized device design, low on-resistance, and cost-effectiveness. The TO-220AB package is universally preferred for commercial-industrial applications at power dissipation levels to approximately 94 W.  The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.

FEATURES

  • Advanced Process Technology
  • Ultra-Low On-Resistance
  • 175°C Operating Temperature
  • Fast Switching
  • Lead-Free, RoHS Compliant
SPECIFICATION
Part Number IRFZ44
 Transistor Polarity N-Channel
Drain-Source Breakdown Voltage (Vds) 55V
Continuous Drain Current(Id) 49A
Drain Source Resistance (Rds on) 0.0175 ohms
Gate Source Voltage (Vgs) 20V
Power Dissipation 94W
Package Type TO-220AB
