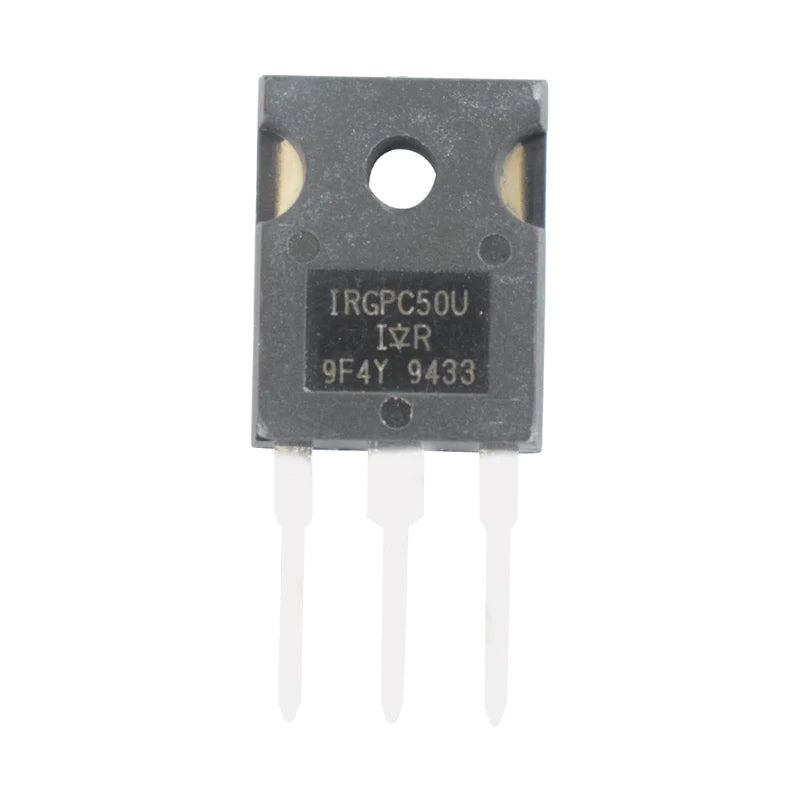

IRGPC50U is an IGBT MOSFET which is mostly known for its ultrafast feature. Its operating current is 27A, and the voltage is 600V. It has a soft recovery time just because of this feature; it performs fast switching operations. Its primarily used in SMPS, UPS, inverters and other general switching applications.
Features:
Model | IRGPC50U |
Type | MOSFET |
Package | TO-247AC |
Brand | International Rectifier |
Voltage | 600V |
Collector current | 27A |
Total power dissipation | 200W |
Lead soldering temperature | 300 Degree centigrade |
Operating and Storage Temperature Range | -55°C TO 150°C |
