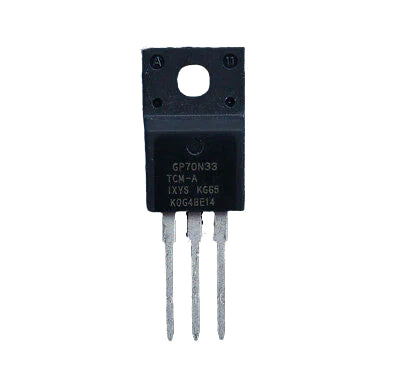

IXYS GP70N33 330V 70A Medium Frequency IGBT

IXYS GP70N33 330V 70A Medium Frequency IGBT

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description IXGP70N33 is a medium frequency insulated-gate bipolar transistor with high current handling capability. It features high power density and a very low switching loss, making it suitable for use...
25 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3552
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Power Transistor
View full product details

Description

IXGP70N33 is a medium frequency insulated-gate bipolar transistor with high current handling capability. It features high power density and a very low switching loss, making it suitable for use in high-frequency applications. The diode is used extensively in AC motor speed control, DC choppers, uninterrupted power supplies (UPS), and so on. It is suitable for surface mountings. This diode comes in a 3-pin layout namely ground (G), emitter (E), and collector (C).

Features:

  • International standard packages JEDEC TO-263 surface mountable and JEDEC TO-220 AB
  • Medium frequency IGBT
  • High current handling capability
  • MOS Gate turn-on-drive simplicity

Applications:

  • Uninterruptible power supplies (UPS)
  • Switched-mode and resonant-mode power supplies
  • AC motor speed control
  • DC choppers

Advantages:

  • High power density
  • Suitable for surface mounting
  • Very low switching losses for high-frequency applications
SPECIFICATIONS
Model IXGP70N33
Brand IXYS
Collector-Emitter Voltage 330V
Gate to Emitter Voltage ±30V
Max. Collector Current 70A
Power Dissipation 48W @25°C, 19W @100°C
Operating Junction Temperature -55°C to 150°C
Package TO-220
