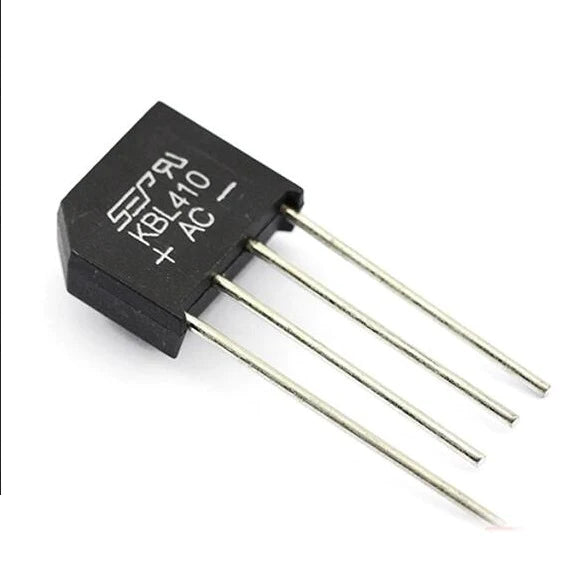

KBL410 1000V, 4A Single Phase Bridge Rectifier

KBL410 1000V, 4A Single Phase Bridge Rectifier

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The KBL410 is a Single Phase Bridge Rectifier . The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum average current this...
29 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3736
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Bridge Rectifier
View full product details

Description

The KBL410 is a Single Phase Bridge Rectifier . The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum average current this IC can handle is around 4A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.1V. It has high efficiency and a surge current capability of 200 A. If you are looking for a compact IC for rectification application this can be a good choice.
This single phase bridge rectifier is mainly used in charger circuits , uninterruptible power supply , led and lcd TVs, audio amplifier and radios.

Features

  •  High current capability
  •  High surge current capability
  •  High reliability
  •  Low reverse current
  •  Low forward voltage drop
  • Ideal for printed circuit board
SPECIFICATION
Model KBL410
Type Bridge Rectifier Diode
Working Peak Reverse Voltage 1000 V
RMS Reverse Voltage VR(RMS) 700 V
Maximum DC Blocking Voltage 1000V
Average Forward Rectified Output Current 4A
Peak Reverse Current @ 25°C 10µA
Operating and Storage Temperature Range -40°C TO 150°C
