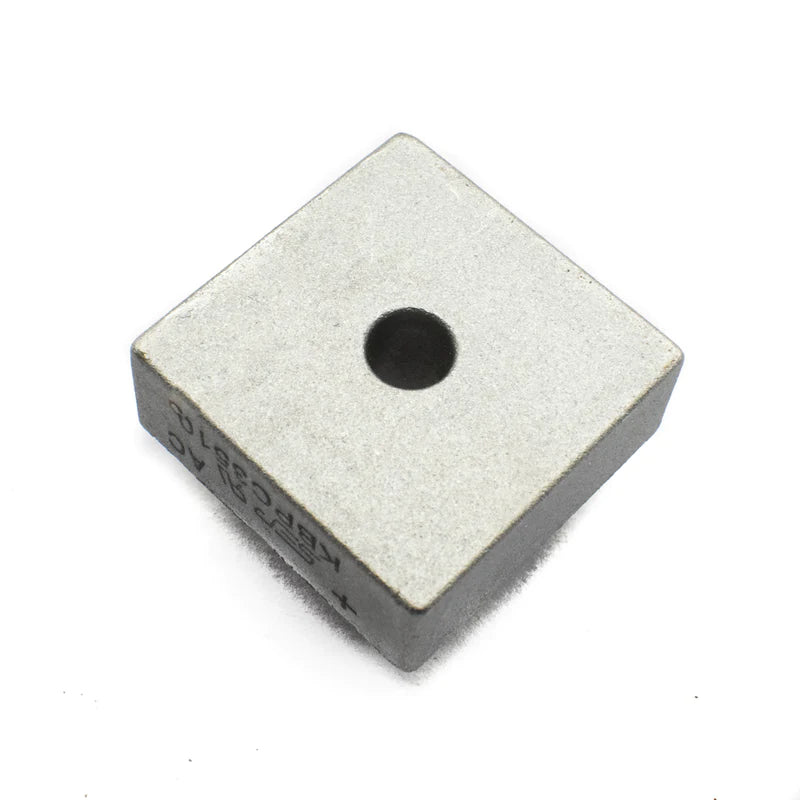

KBPC3510 35A 1000V Single-Phase Bridge Rectifier (Plated Leads)

KBPC3510 35A 1000V Single-Phase Bridge Rectifier (Plated Leads)

Regular price ₹ 0.00
Regular price Sale price ₹ 0.00
Sold Out
Tax included. Shipping calculated at checkout.
Description The KBPC3510 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a...
21 people are viewing this right now

AvailabilityIn stock

SKU: ATC-3747
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Bridge Rectifier
View full product details

Description

The KBPC3510 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 35A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.0V. It has high efficiency and a high surge current capability of 400A. If you are looking for a compact IC for rectification application this can be a good choice.

Pinout

Pin Number

Pin Name

Pin Description

1

Positive

Positive of Rectified Output

2

AC Input

AC Input

3

Negative

Negative of Rectified Output

4

AC Input

Ac Input

Features:

  • Superior thermal design
  • 400 amperes surge capability
  • Mounting: Hole thru for #8 screw
  • 1/4" universal faston terminal
  • Both normal and Pb free product are available:
  • Normal:80-95% Sn,5-20%Pb
  • Pb free:99 Sn above can meet Rohs environment substance directive request
SPECIFICATIONS

Input Voltage

50-1000V

Maximum RMS Bridge Input Voltage

700V

Maximum DC Blocking Voltage

1000V

Maximum Average Forward Output Current

35A

Maximum Forward Voltage

1.0V

Operating Temperature Range:

-55 to + 150°C

Dimensions

 29mm x 29mm x 22.1mm
