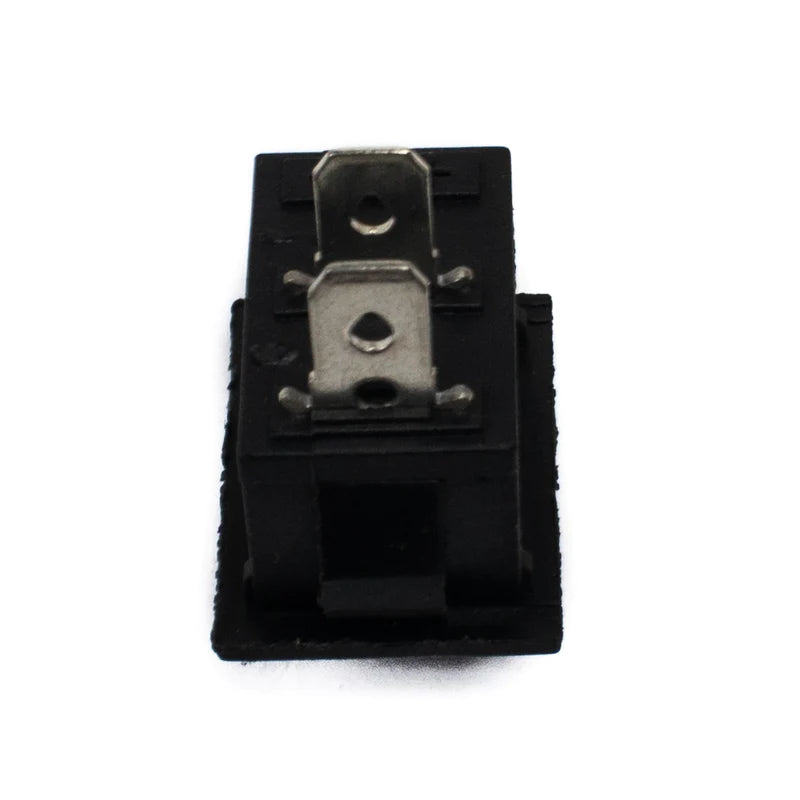

KCD1 6A 250V AC SPST ON-OFF Rocker Switch with Copper Contacts

KCD1 6A 250V AC SPST ON-OFF Rocker Switch with Copper Contacts

Description This Rocker switch works on SPST (Single Pole Single Throw) mode. This switch is rated for a load of 6A 250V and 10A 125V. The contact resistance of the...
21 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2369
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Rocker Switch
View full product details

Description

This Rocker switch works on SPST (Single Pole Single Throw) mode. This switch is rated for a load of 6A 250V and 10A 125V. The contact resistance of the switch is ≤ 20 mΩ and the insulation resistance of the switch is ≥100MΩ. SPST Round Rocker switches have two positions which are ON and OFF. To make identification of the position of the button easy ON and OFF positions are clearly marked on the button as I and O respectively.

SPECIFICATIONS
Voltage and Current Rating Max 6A at 250VAC and 10A at 125VAC
Switching Mode ON-OFF
Structure SPST
Colour Black
Contact Resistance ≤ 20 mΩ
Insulation Resistance ≥100MΩ
Number of Pins 2
Dimension (LxWxH) 21x15x25 (mm)
Panel Cut-Out(LxW) 21x11.6 (mm)
Quantity 5 Pieces
