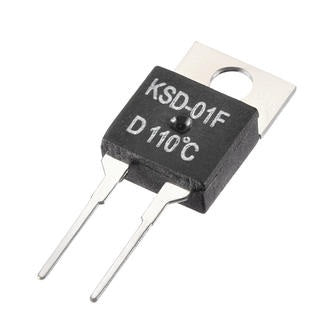

KSD01F-110 Temperature Switch TO-220 Package 24V, 3A

KSD01F-110 Temperature Switch TO-220 Package 24V, 3A

Description KSD01F-110 is a TO-220-packaged Temperature Switch/Thermal switch. The Calibrated Bimetal will quickly connect the circuits (usually opened) when the outside temperature is too high. When the temperature drops to...
18 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2476
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Thermal Switch
View full product details

Description

KSD01F-110 is a TO-220-packaged Temperature Switch/Thermal switch. The Calibrated Bimetal will quickly connect the circuits (usually opened) when the outside temperature is too high. When the temperature drops to the reset temperature, the bimetal will revert to the reset position. The protection of the safety of the product temperature is frequently ensured in this way. Common applications included the alarm system circuit ON/OFF when overheated electrical equipment, electronic items, power supplies, vehicles, medical equipment, test equipment, home appliances, and circuit boards for temperature management and thermal overload protection.

Features

  • KSD-01F-100 is a Bimetal Temperature Control Switch Thermostat.
  • General-purpose low cost, compact, large capacity, minute current thermostat.
  • Apply to circuit board for temperature control or thermal overload protection use.
SPECIFICATIONS
Model KSD01F-110
Type Temperature Switch
Package Type TO-220
Contact load 220V AC 1A or 24V DC 3A
Contact resistance 50mΩ
Temperature 110°C
Insulation value 100MΩ (500VDC)
Dielectric strength 1500V / DC, 60Hz
Standard tolerance ± 5
