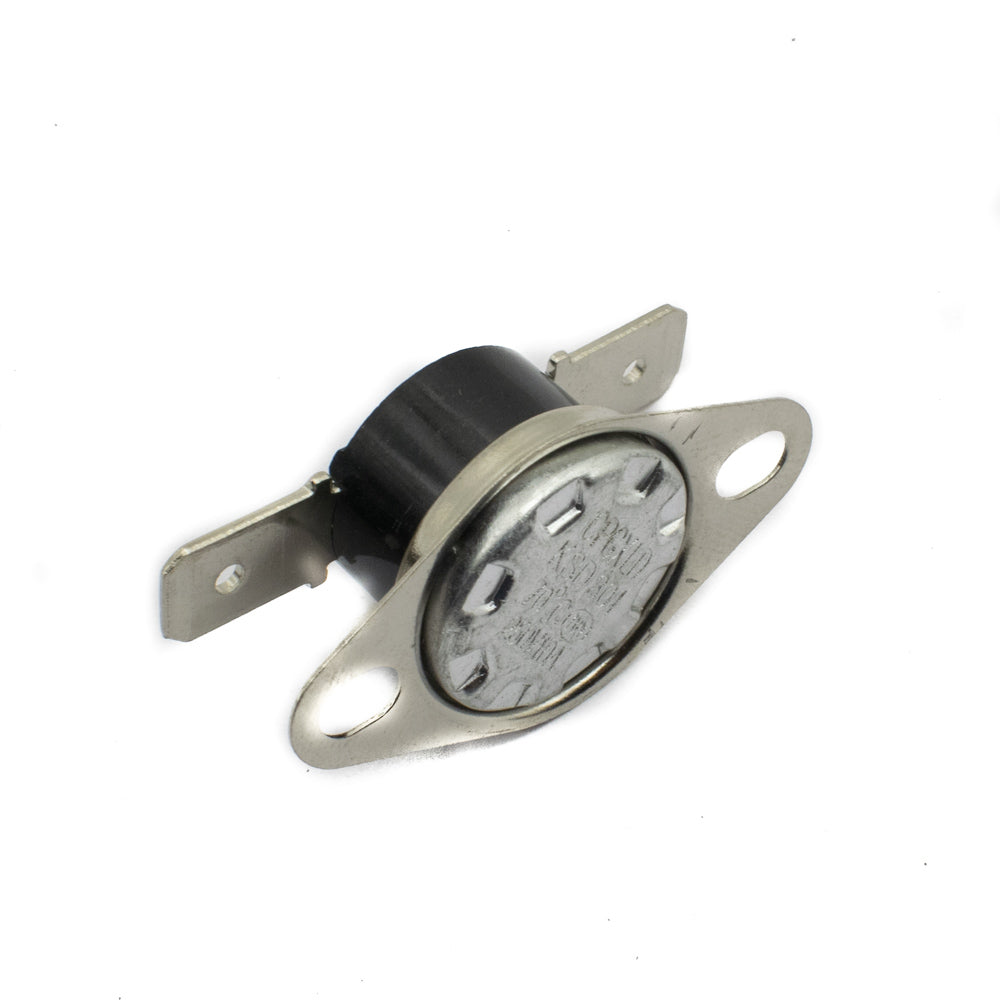

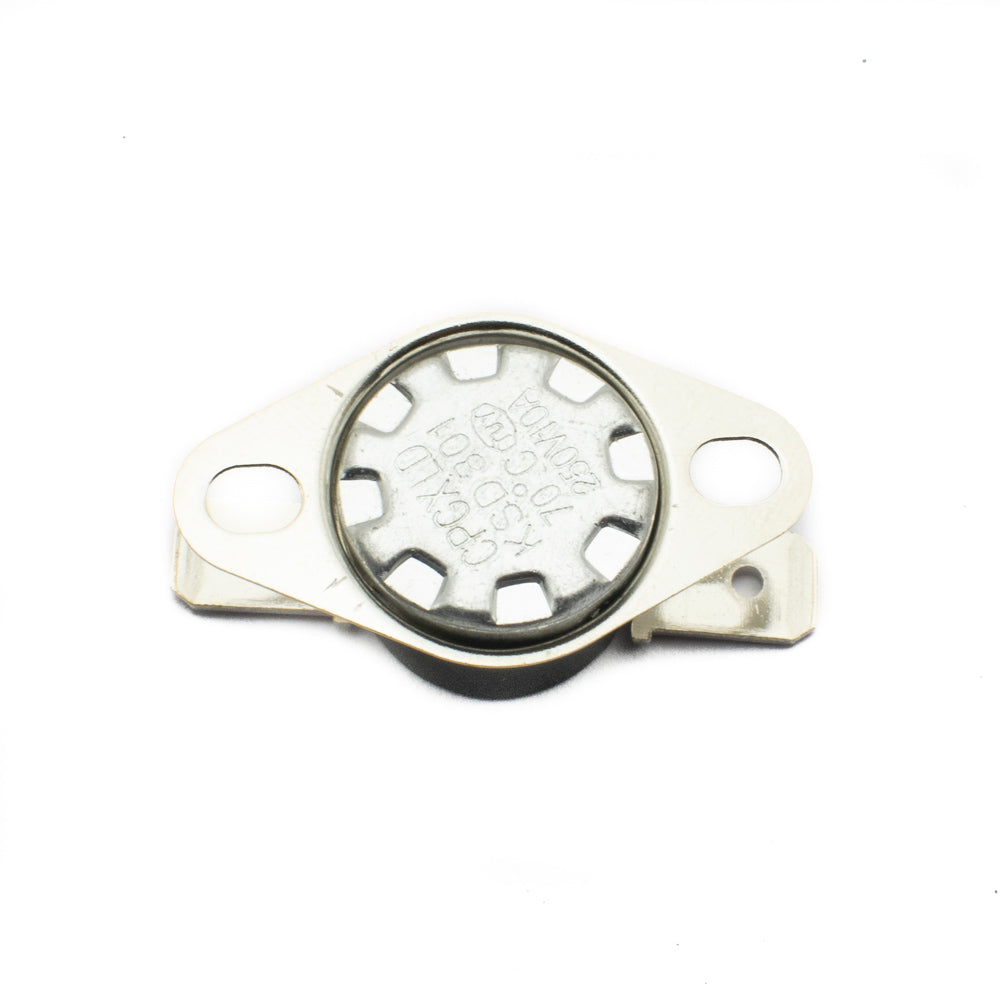

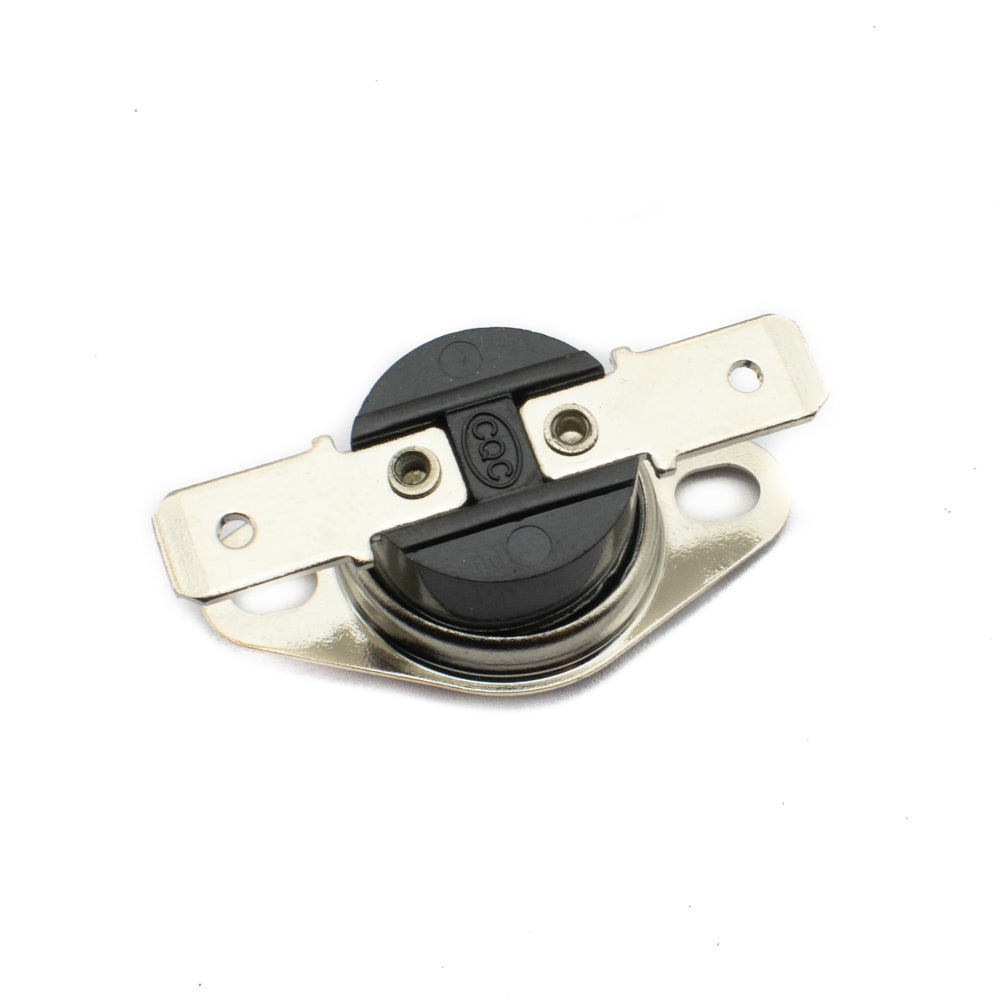

KSD301 Thermostat 70°C temperature thermal Switch - Normally Open

KSD301 Thermostat 70°C temperature thermal Switch - Normally Open

Description KSD301 70°C Thermal Control Switch 250V 10A NO (Normally Open) The original state of temperature control switch contact is open and closed when the temperature sensing exceeds the rated temperature....
16 people are viewing this right now

AvailabilityIn stock

Ask For Price
SKU: ATC-2479
Vendor: ArrowTechCart

Shipping & Returns

Free shipping and returns available on all orders!

We ship all orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Collections: Thermal Switch
View full product details

Description

KSD301 70°C Thermal Control Switch 250V 10A NO (Normally Open) The original state of temperature control switch contact is open and closed when the temperature sensing exceeds the rated temperature.  This KSD301 thermostat is used widely for coffee makers, water heaters, immersion heaters, electric cookers, microwave ovens, automatic toasters, etc. It is open until the temperature reaches 70 Celsius degree, then the switch closes. Widely used for temperature control or protection for household electric appliances.Widely used for temperature control or protection for household electric appliances.

Features

  • Double metal chip
  • Contact sensor, speed dynamic type
  • Sensitive, reliable, safe,
  • Stable action temperature
  • Long service life
  • No arc phenomenon automatically reset
SPECIFICATIONS

Rated Voltage

250V

Rated Current

10A

Model

KSD 301

Action type

Normally Open

Action Temperature

70°C

Material

Metal

Diameter

15.6mm

Length*Height

34.1*11.8mm
